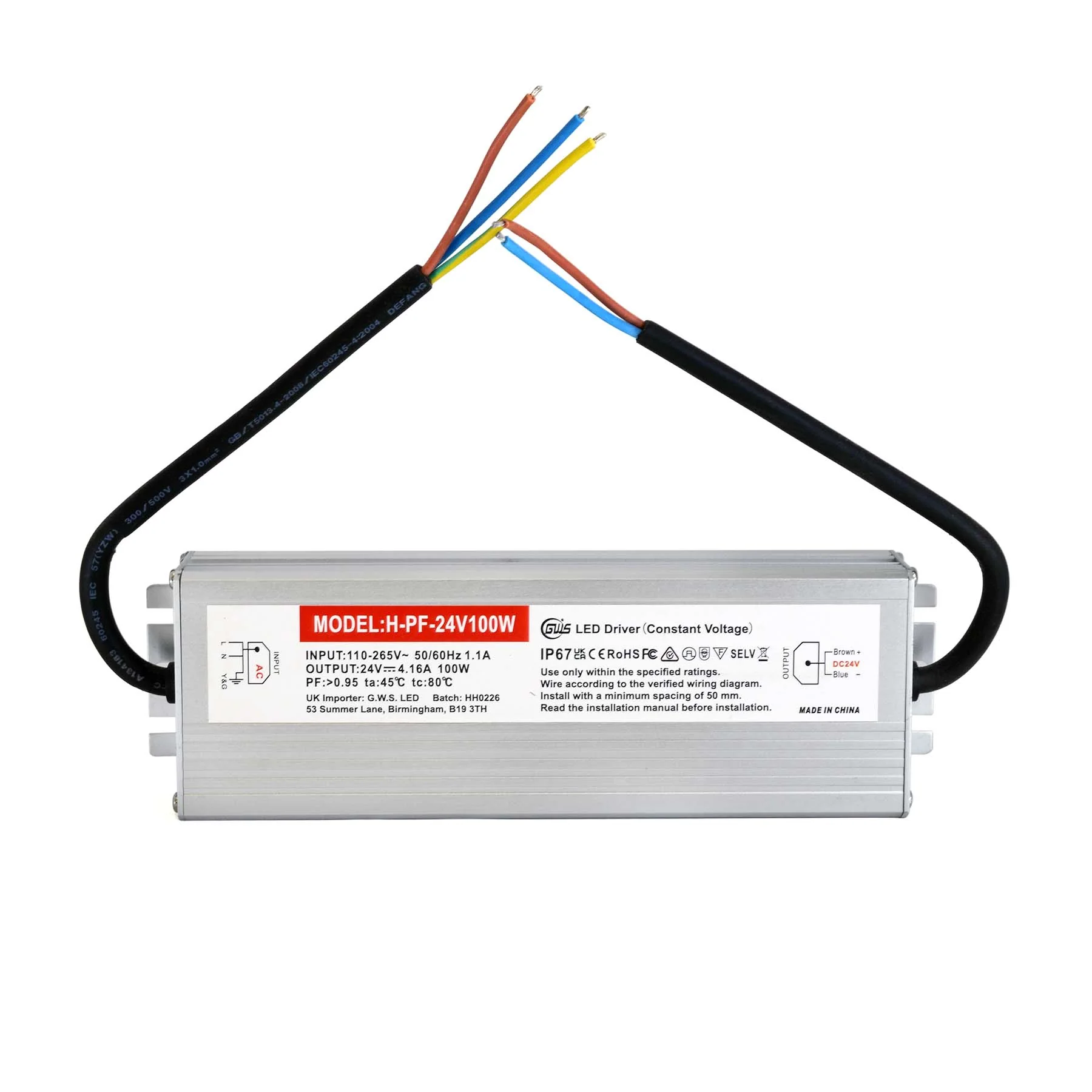

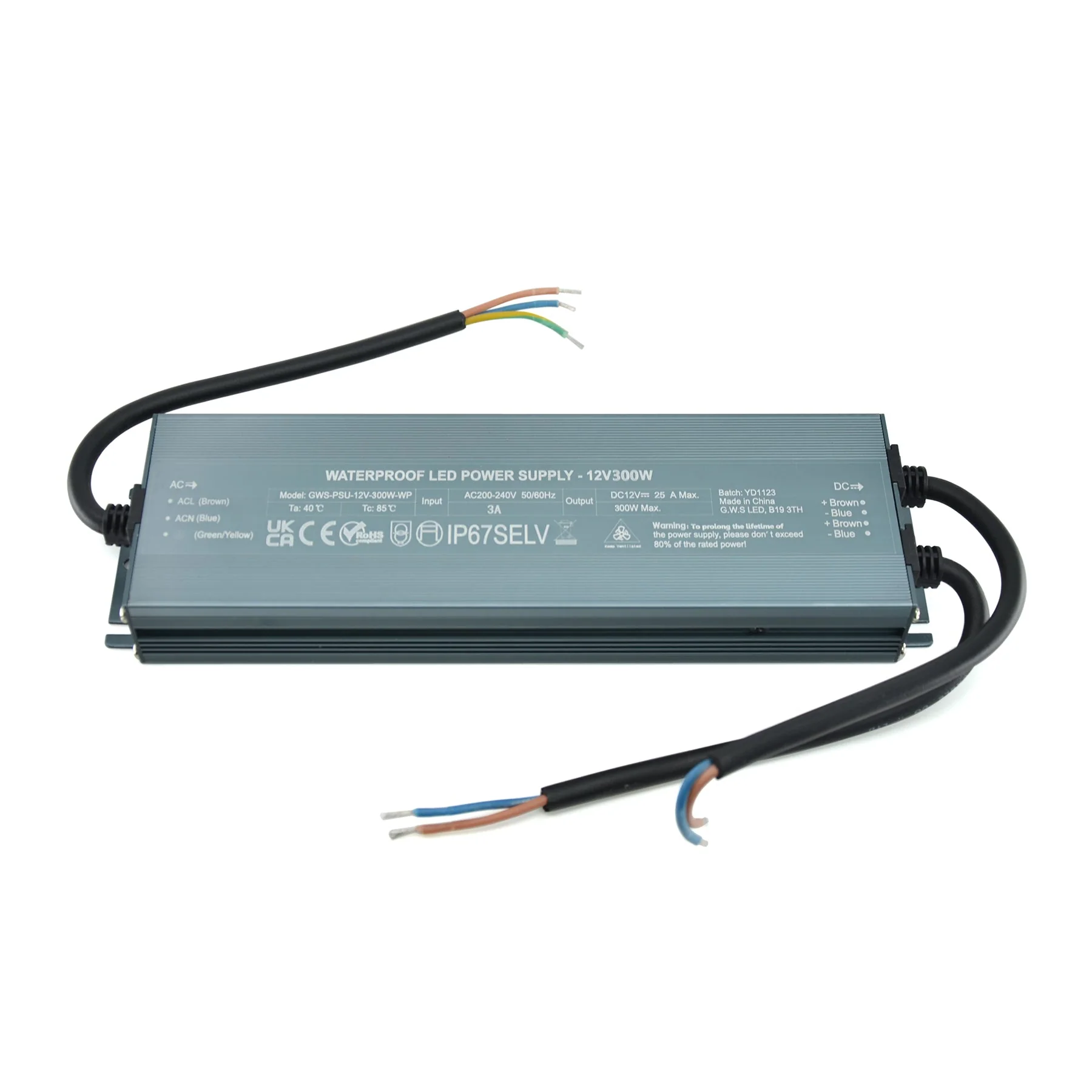

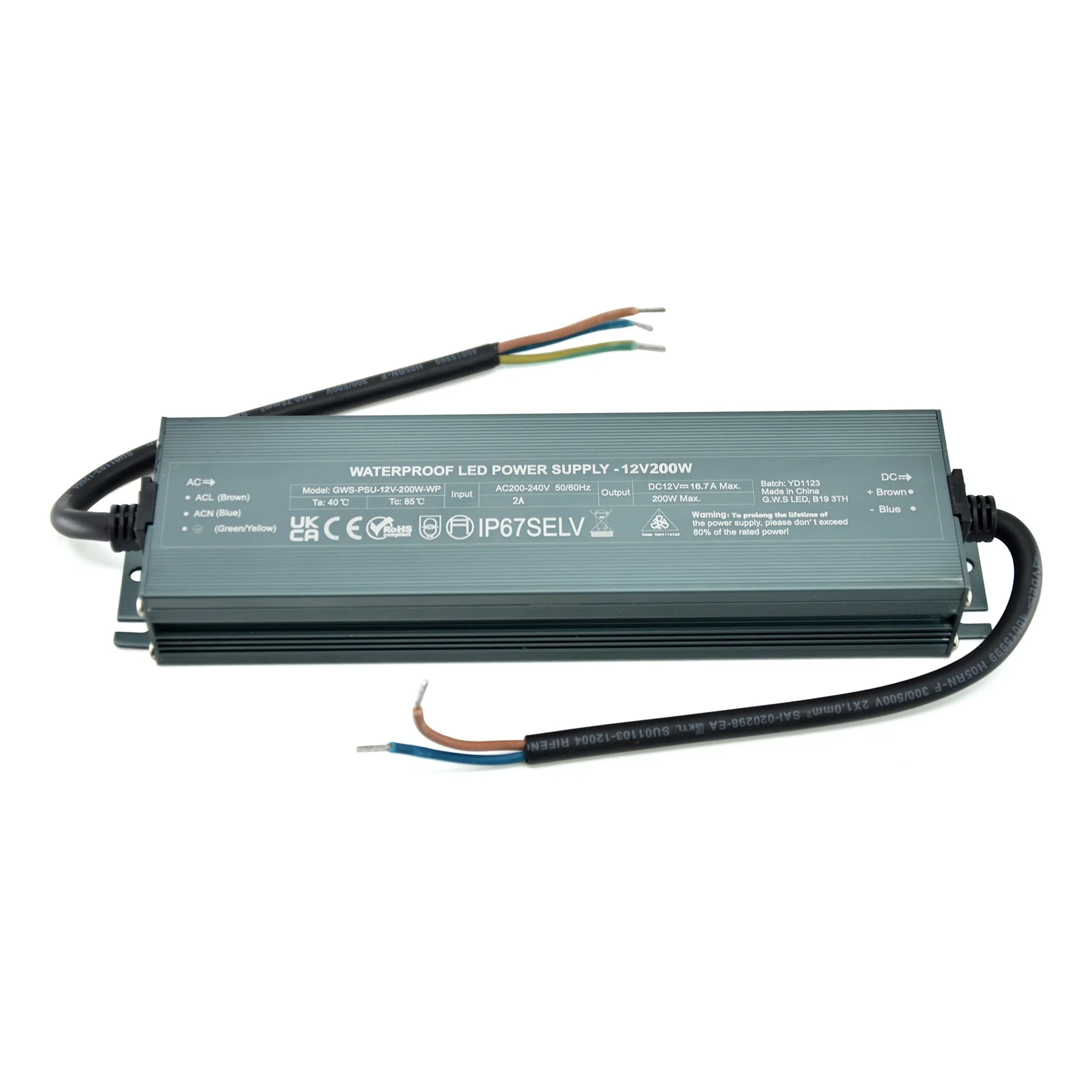

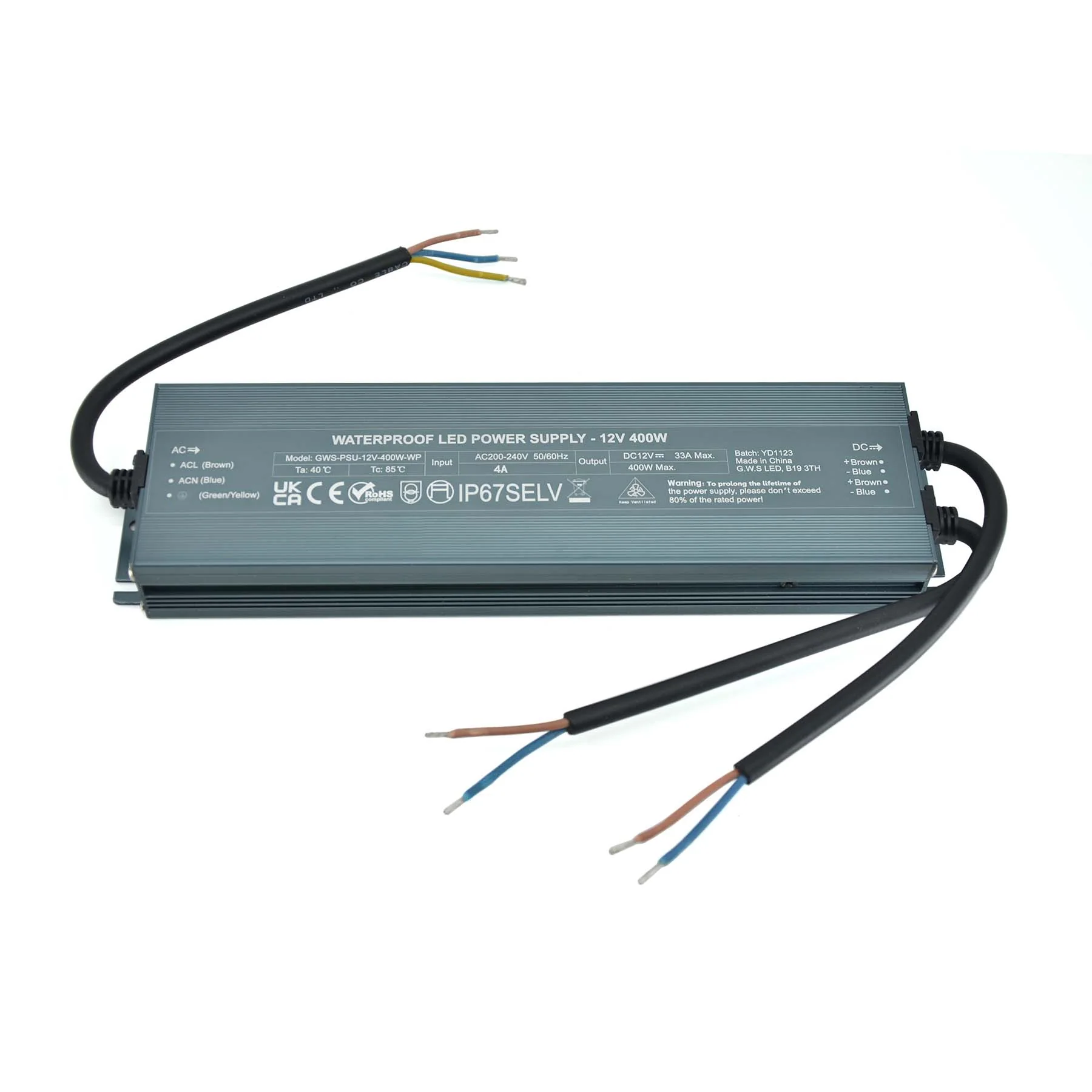

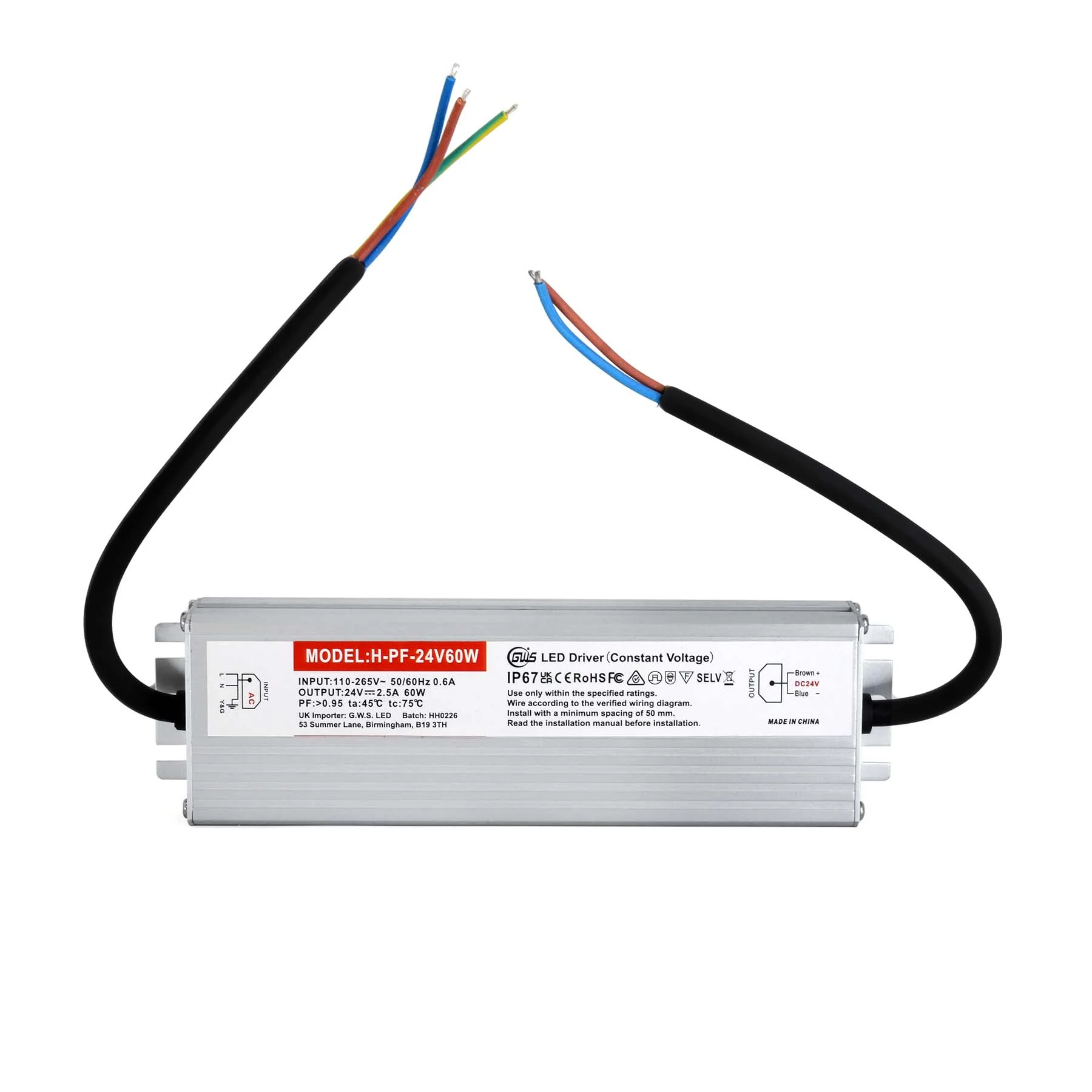

This slim constant voltage LED power supply collection (also known as LED transformer or LED driver) is designed to provide a reliable and stable DC output for a wide range of low-voltage LED lighting applications. Housed in a compact, weather-resistant aluminium casing (IP67 rated), this range is suitable for both indoor and outdoor use. Engineered for efficiency, durability, and safety, these transformers are ideal for powering 12V or 24V LED strips, modules, and other compatible lighting systems. The slimline design is perfect for installations with limited space, such as under cabinets, signage, or narrow lightbox frames.

Features:

• Constant Voltage Output - Provides a stable 12V or 24V DC output, ideal for LED strip lights, modules, and other low-voltage LED systems.
• IP67 Waterproof Rating - Fully sealed aluminium housing protects against dust, rain, and temporary submersion – suitable for outdoor or damp environments.
• Slimline Aluminium Casing - Compact and low-profile design allows for easy installation in tight spaces while aiding heat dissipation for long-term reliability.
• Short Circuit, Overload & Overheat Protection - Built-in safety mechanisms protect both the power supply and connected LED lights, ensuring long-lasting performance.

12V Models

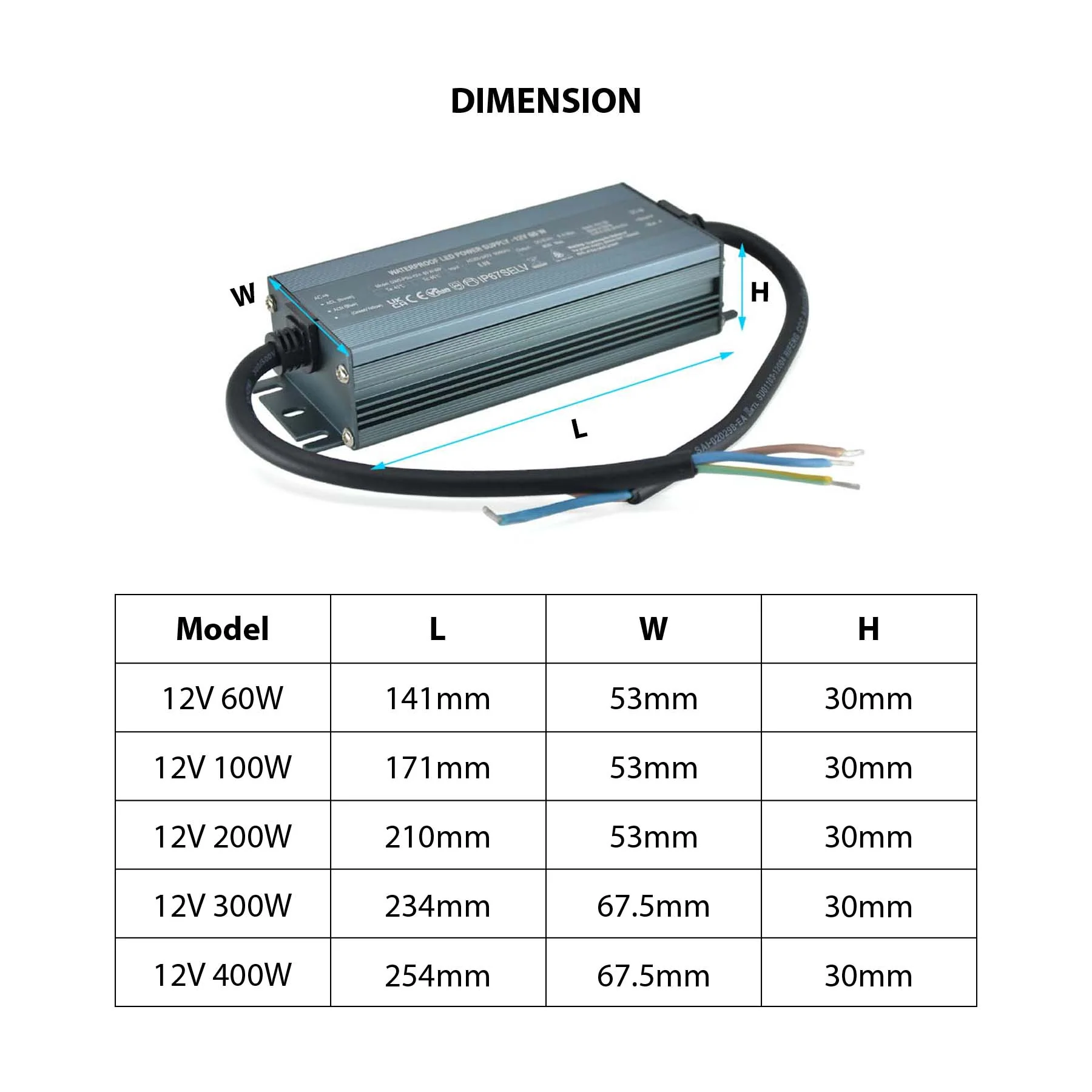

Output Voltage	Output Current	Output Power	Input Voltage	Dimension (mm)
12V	5A	60W	AC200-240V	141(L)*53(W)*30(H)
12V	8.3A	100W	AC200-240V	171(L)*53(W)*30(H)
12V	16.7A	200W	AC200-240V	210(L)*53(W)*30(H)
12V	25A	300W	AC200-240V	234(L)*67.5(W)*30(H)
12V	33A	400W	AC200-240V	254(L)*67.5(W)*30(H)

24V Models

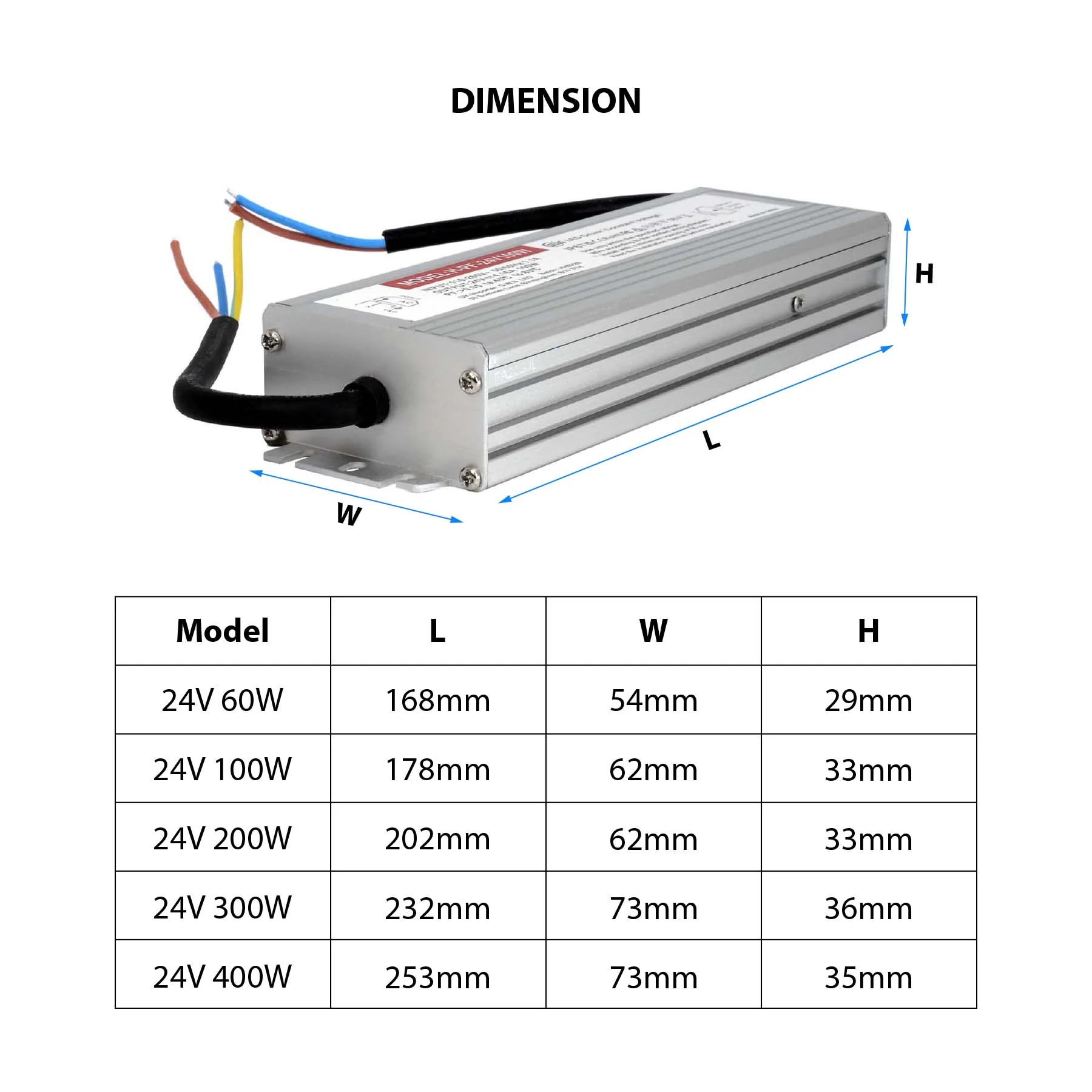

Output Voltage	Output Current	Output Power	Input Voltage	Dimension (mm)
24V	2.5A	60W	AC110-265V	168(L)*54(W)*29(H)
24V	4.16A	100W	AC110-265V	178(L)*62(W)*33(H)
24V	8.33A	200W	AC110-265V	202(L)*62(W)*33(H)
24V	12.5A	300W	AC110-265V	232(L)*73(W)*36(H)
24V	16.6A	400W	AC110-265V	253(L)*73(W)*35(H)
