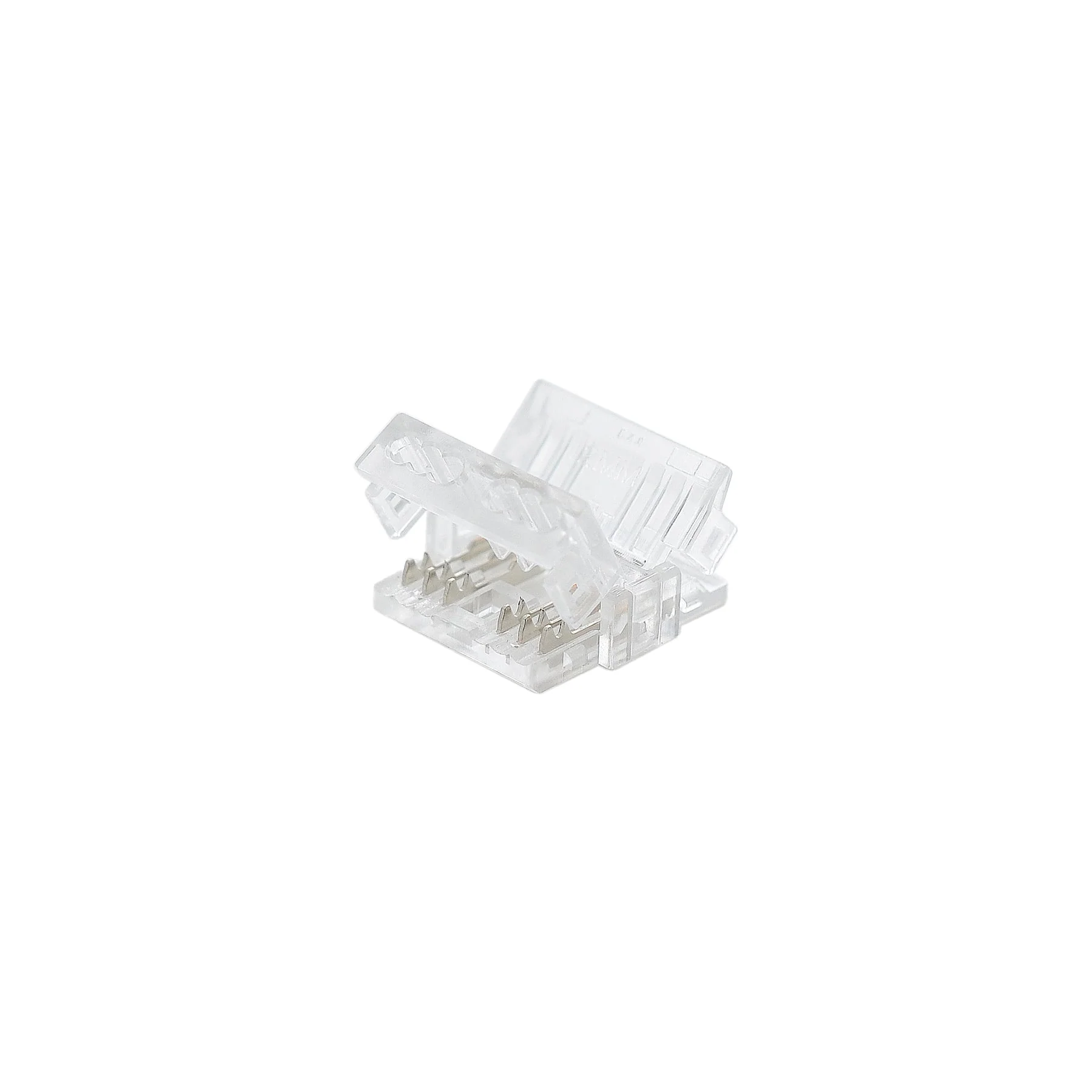

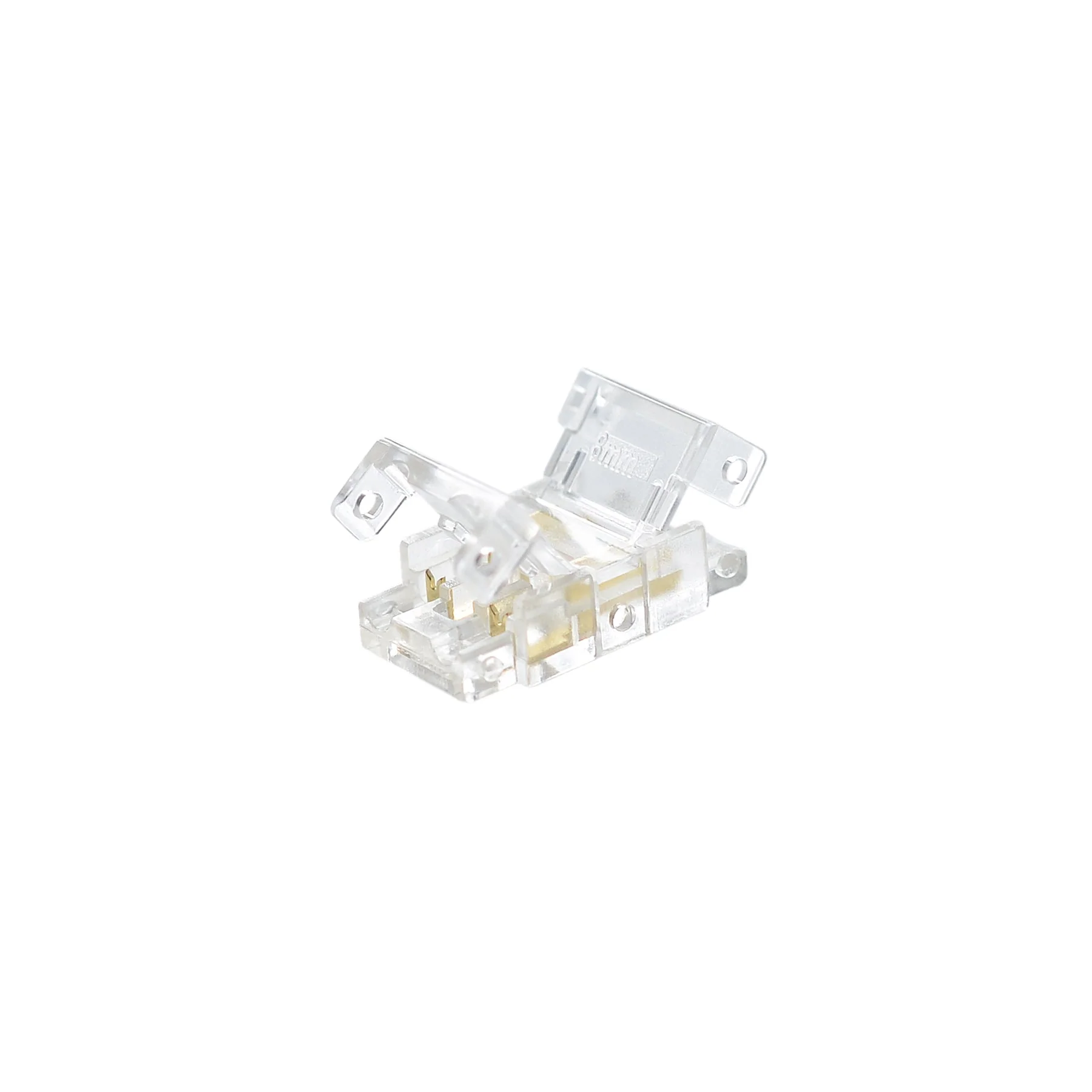

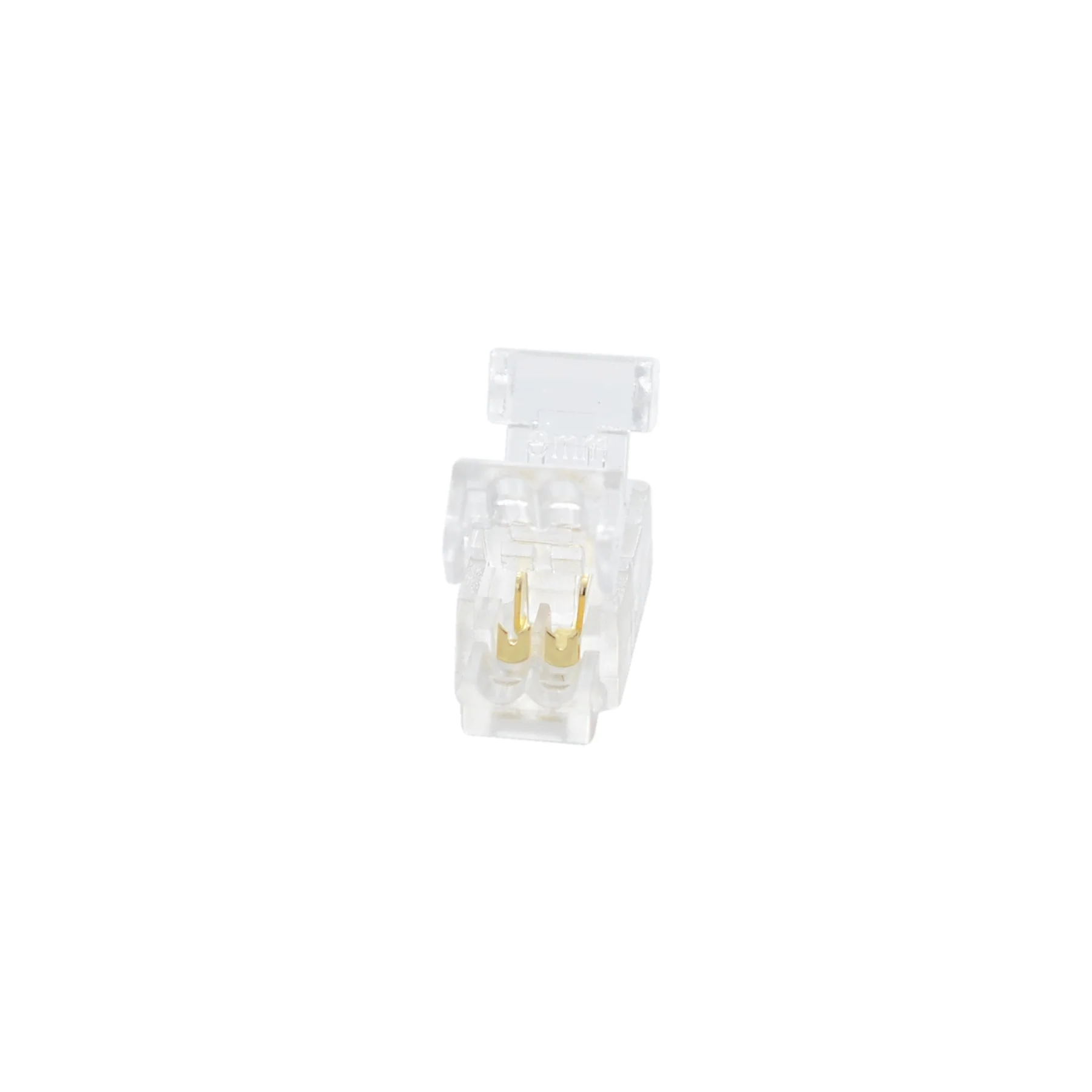

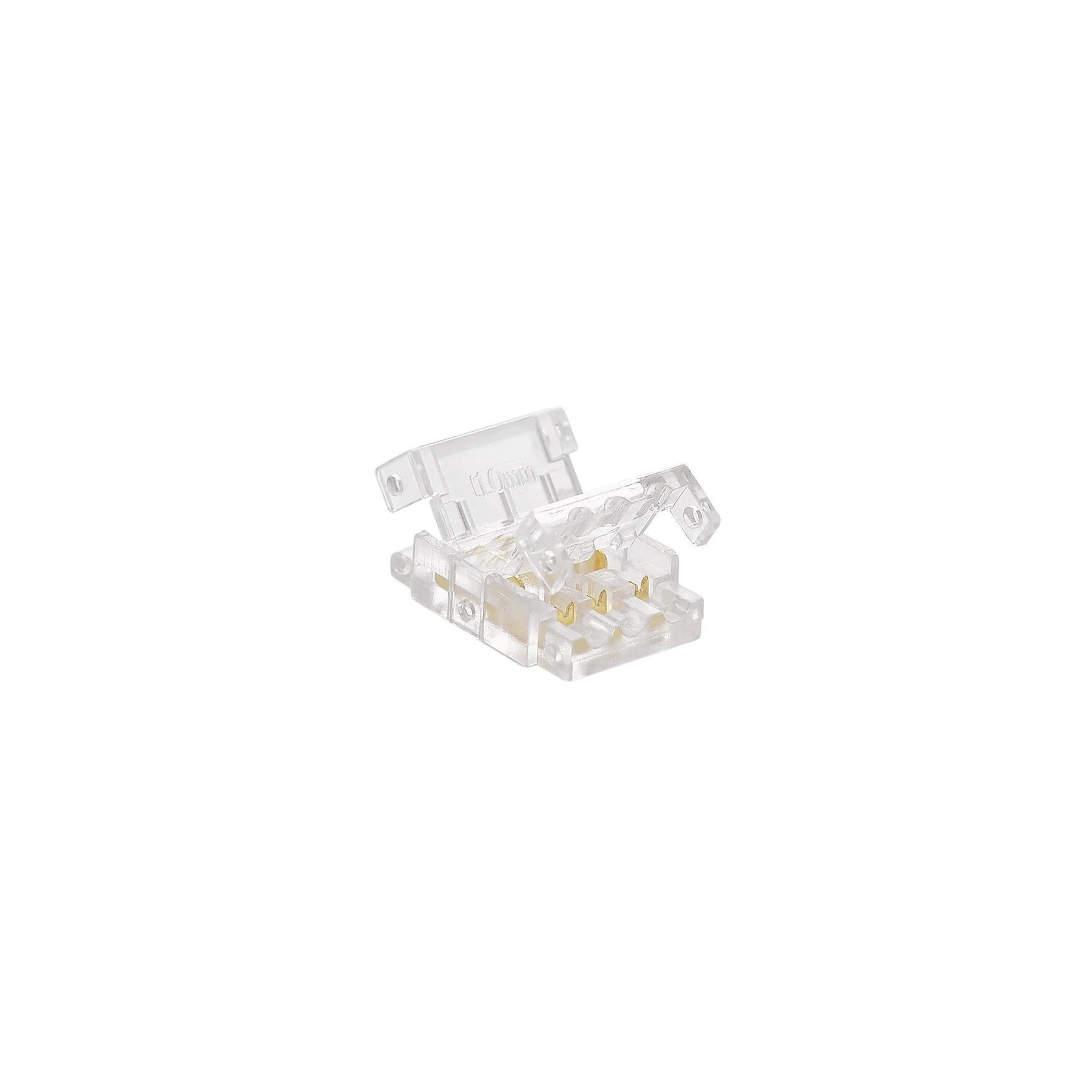

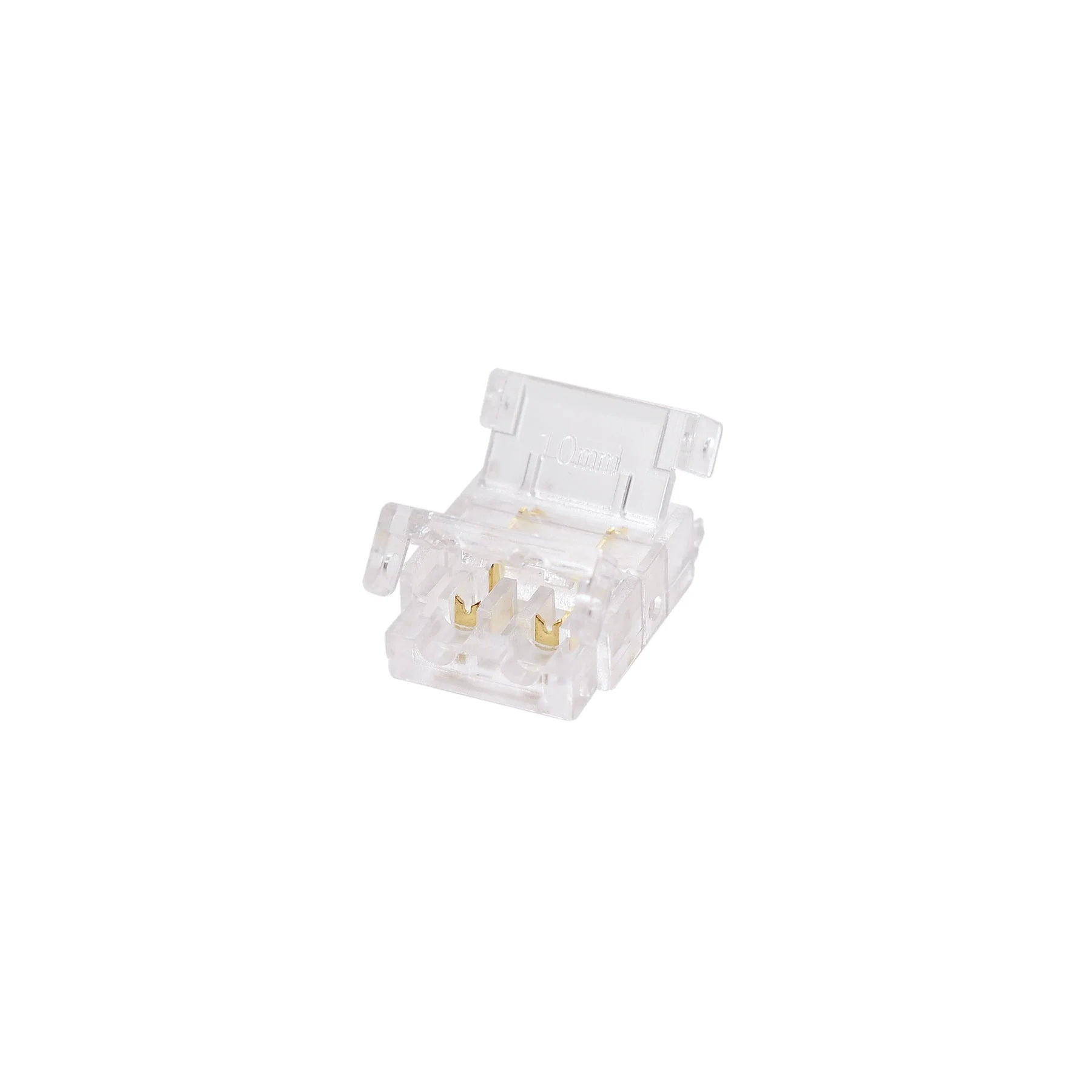

Quick Fit Solderless Strip to Wire Straight Connector For DC LED Strip Lights
A solderless strip-to-wire straight connector designed for DC low voltage LED strips.
Allows you to connect an LED strip directly to a power cable without soldering, saving time and effort during installation.
How to Use:
- Turn off the power: Always disconnect the power supply first.
- Cut the LED strip: Cut the strip only on the marked cut line.

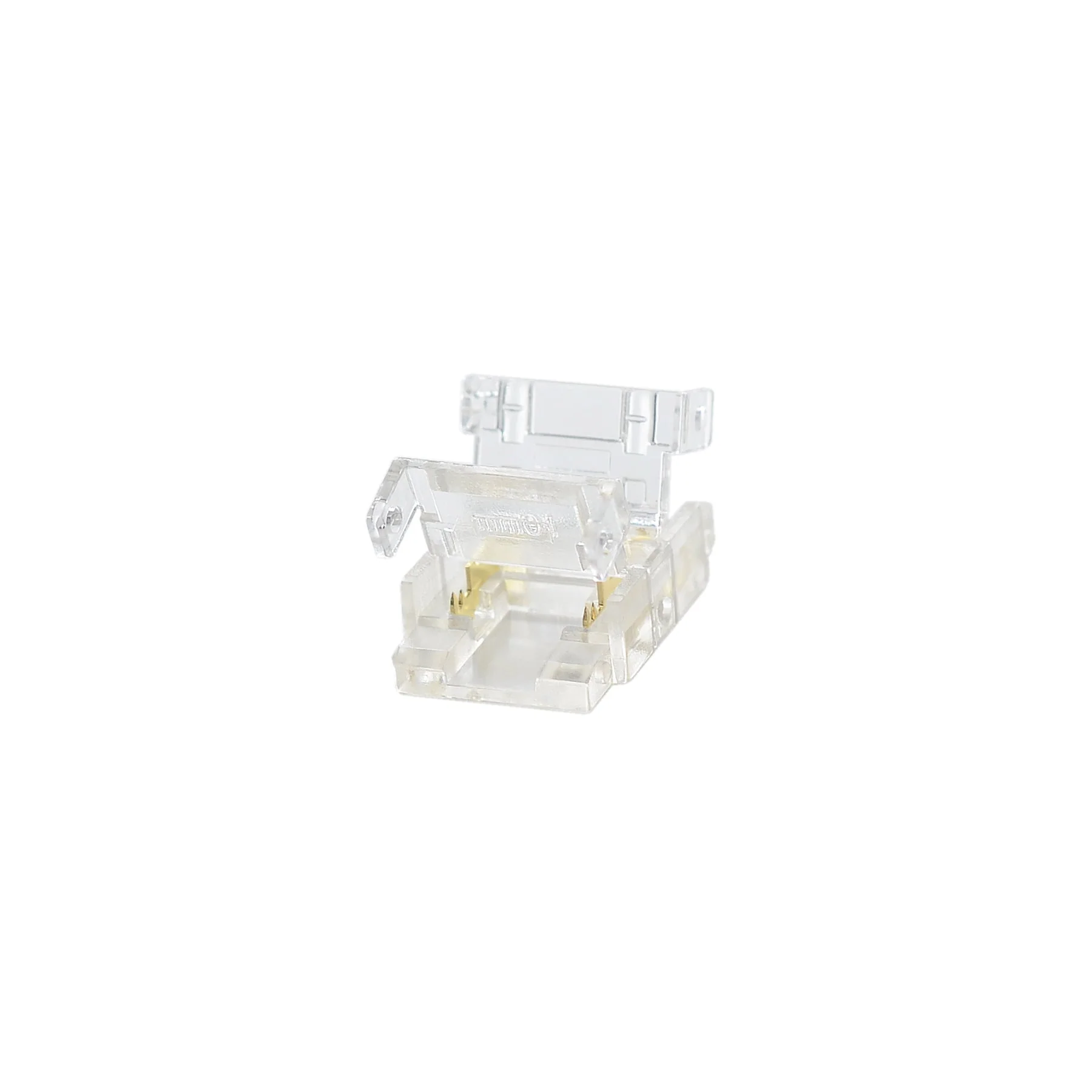

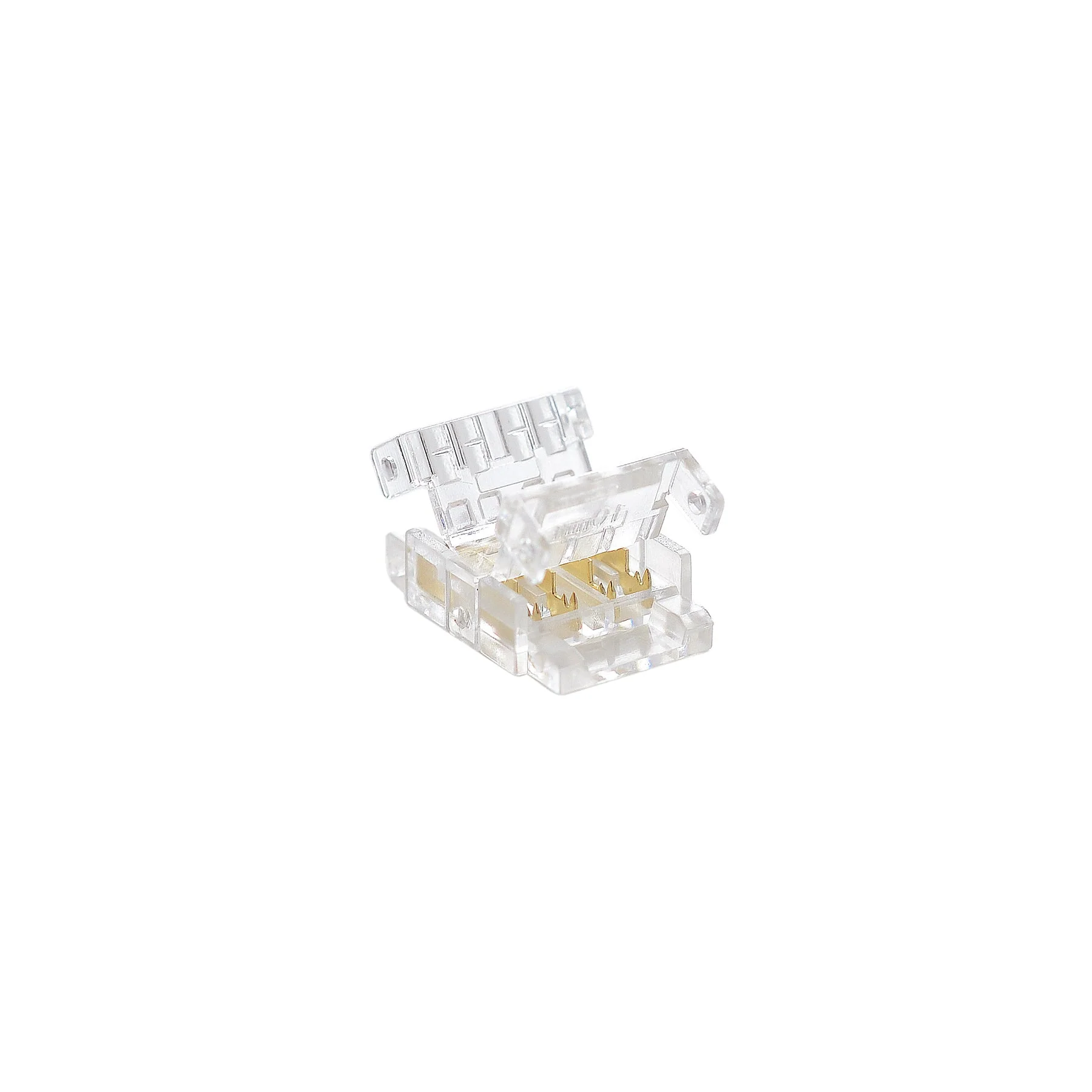

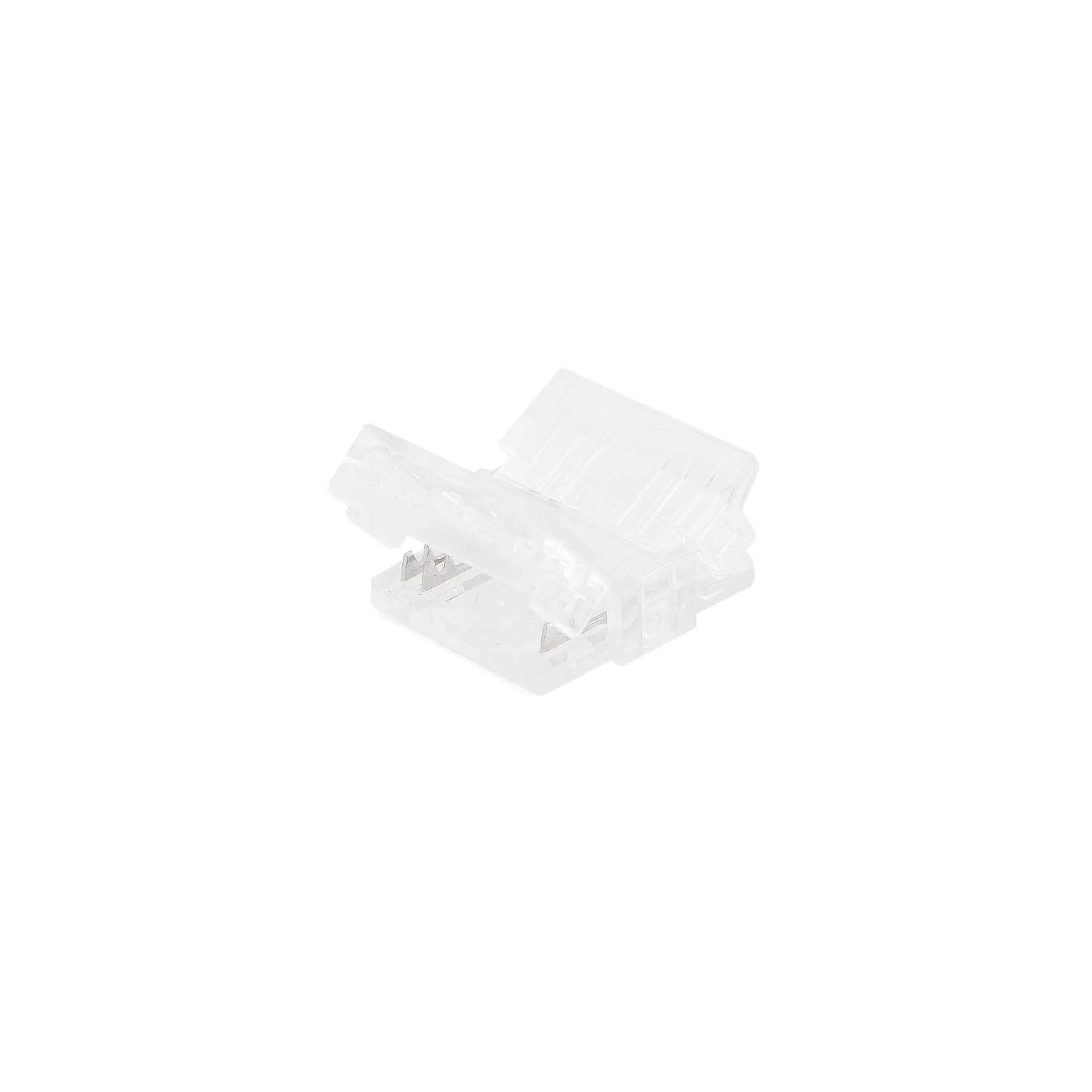

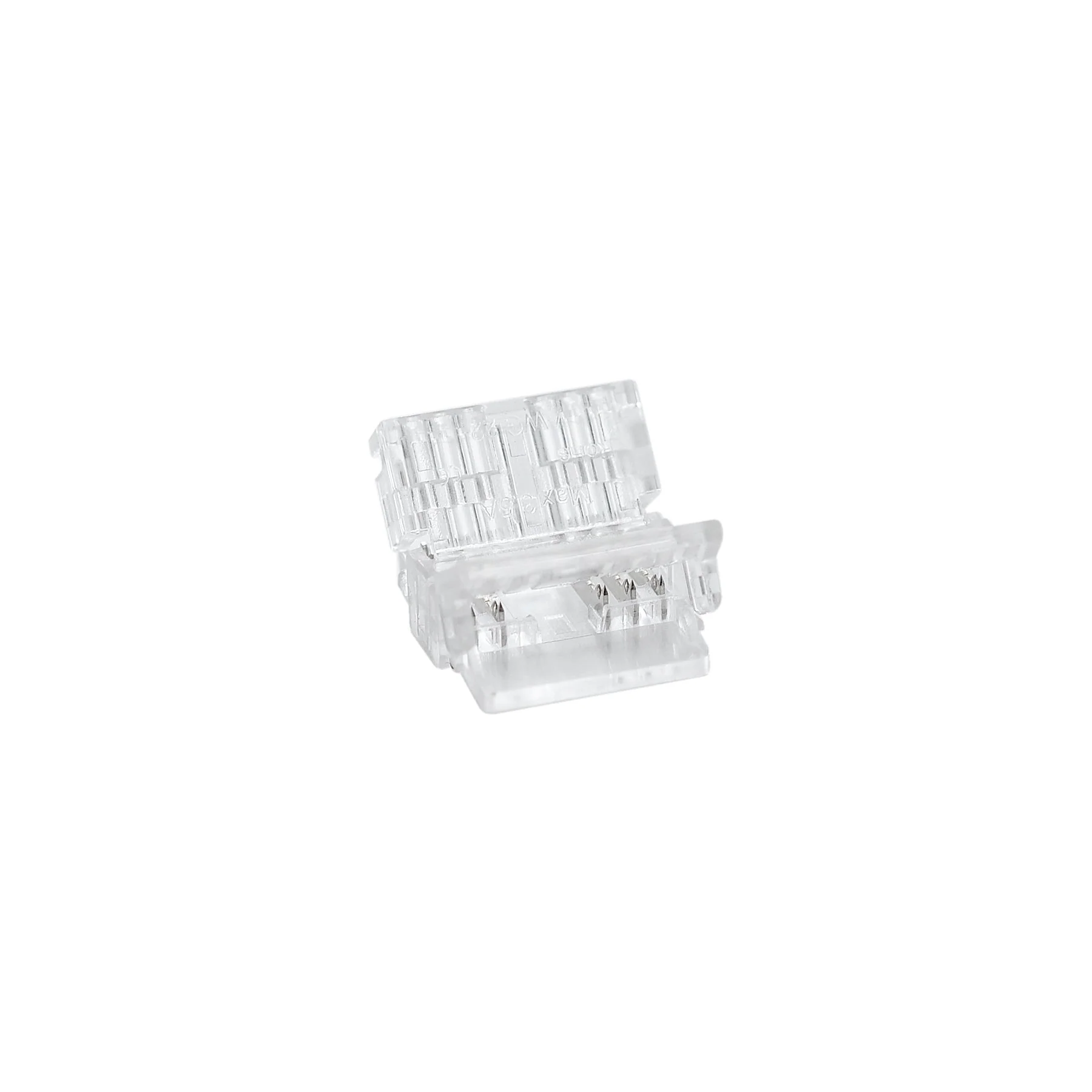

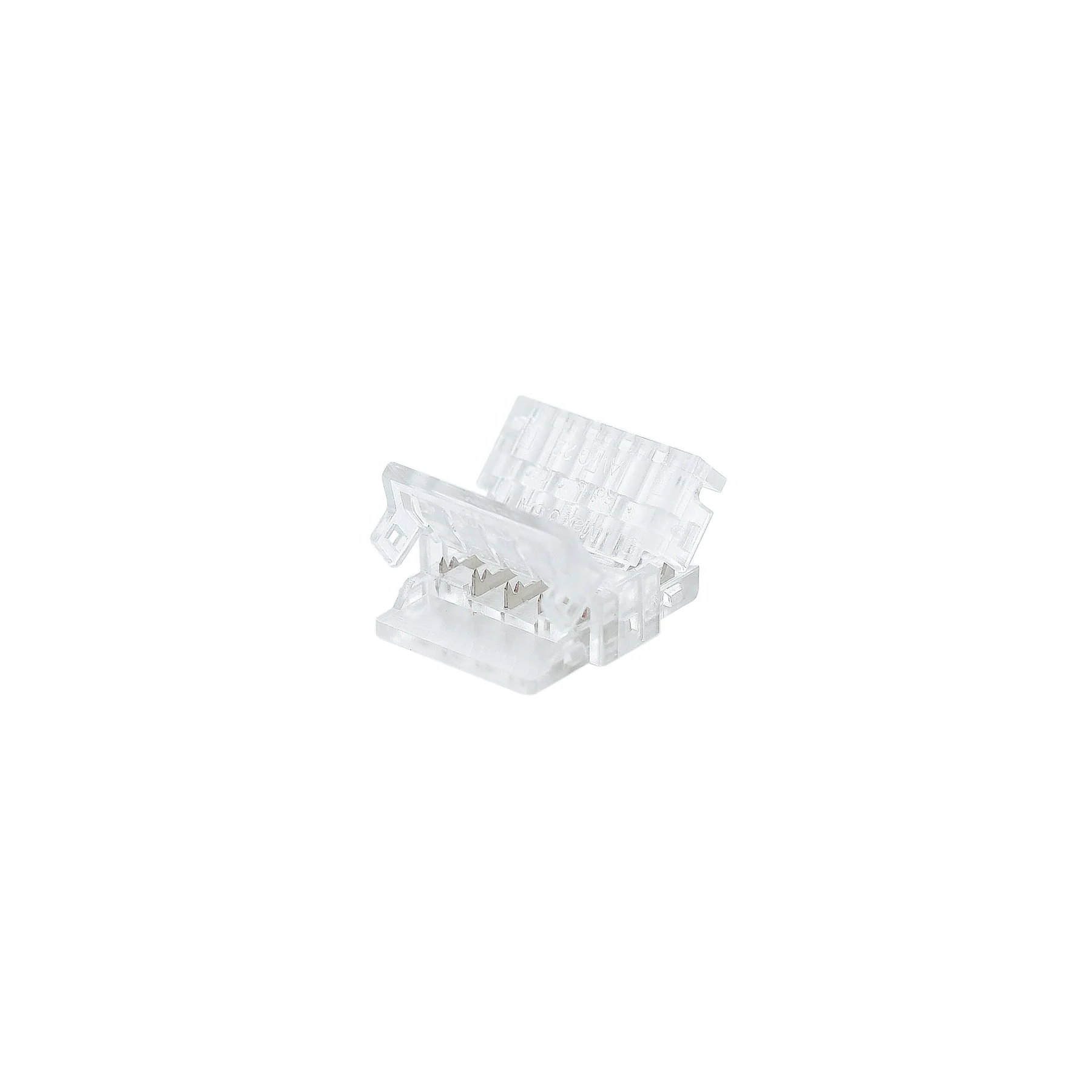

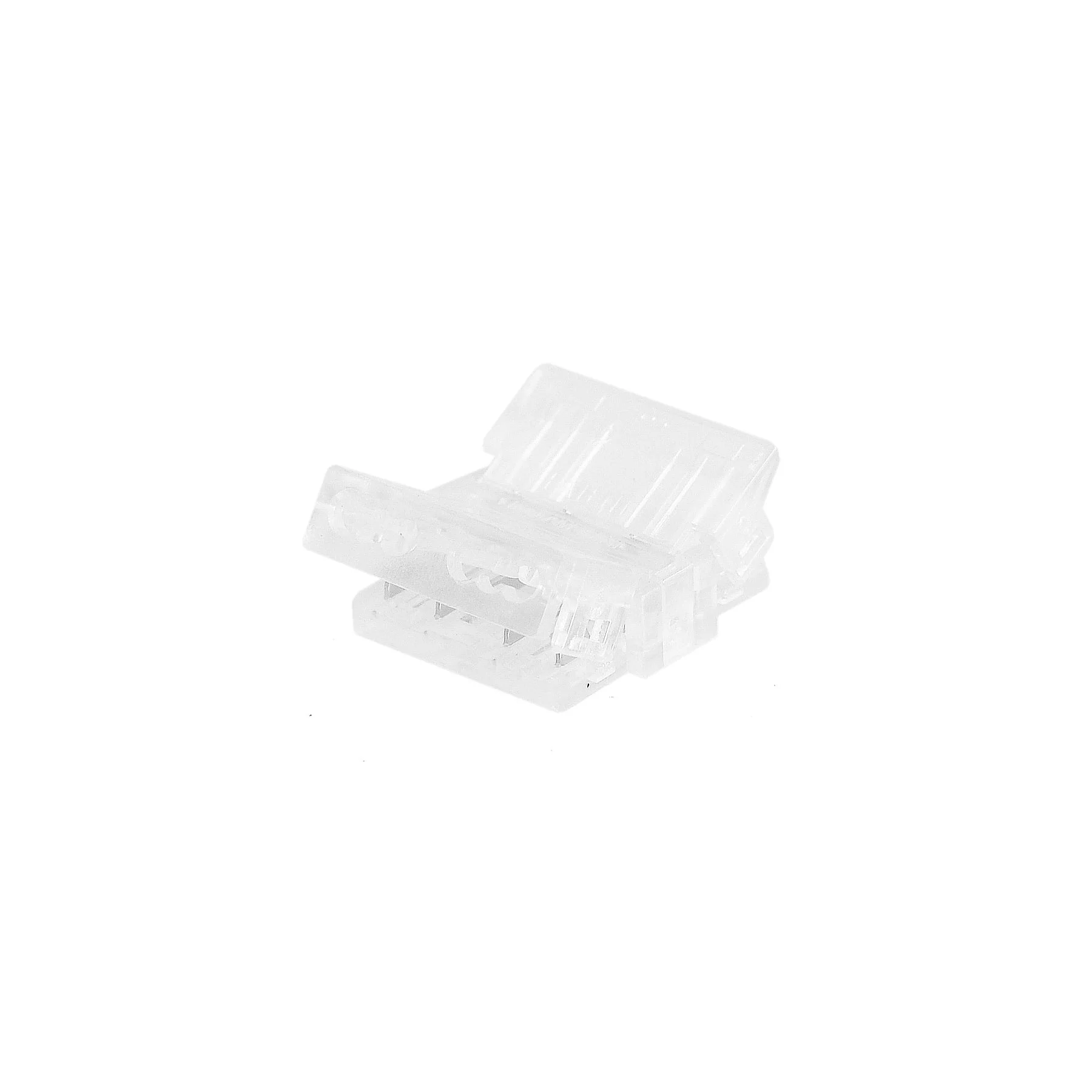

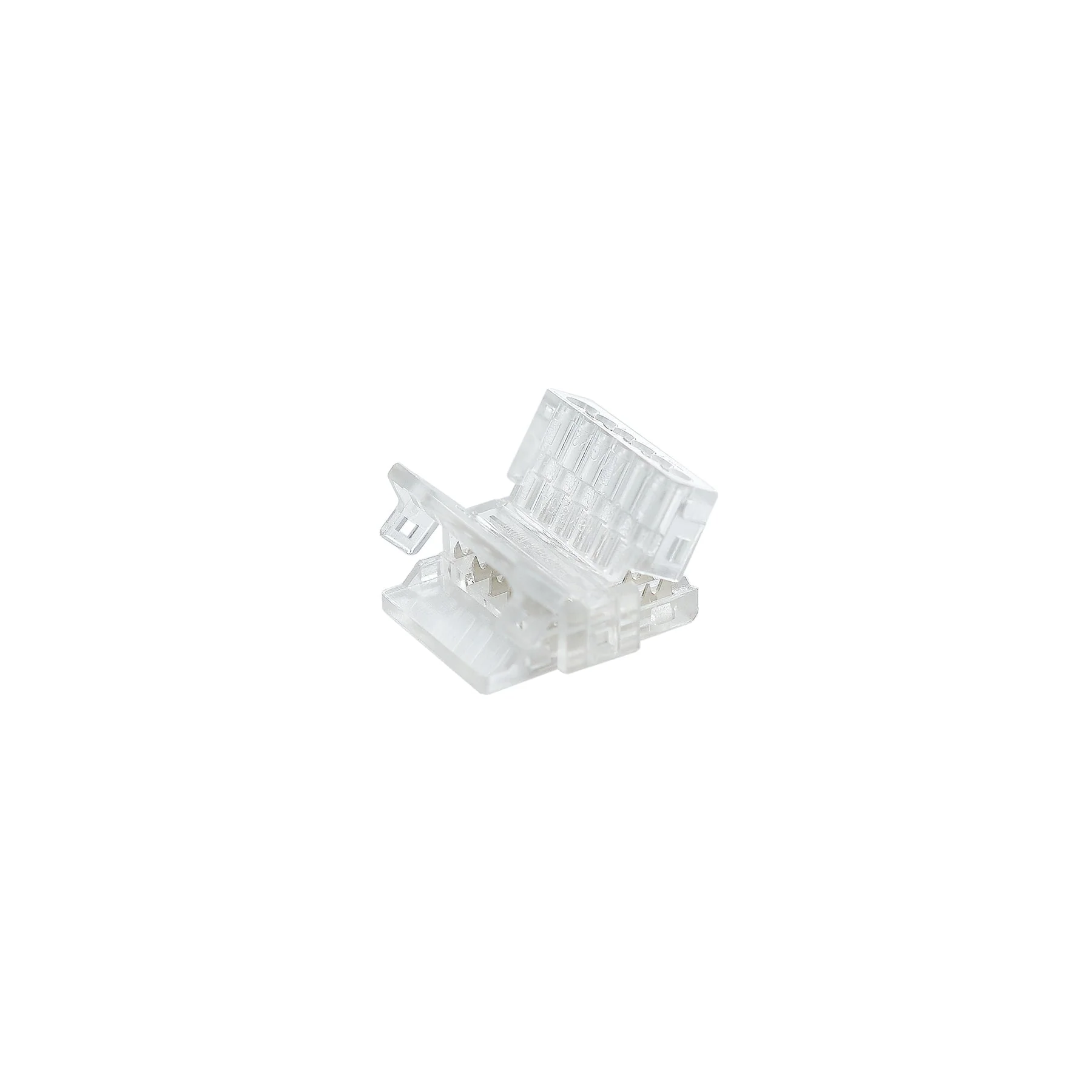

- Open the connector: Lift the small plastic clip.

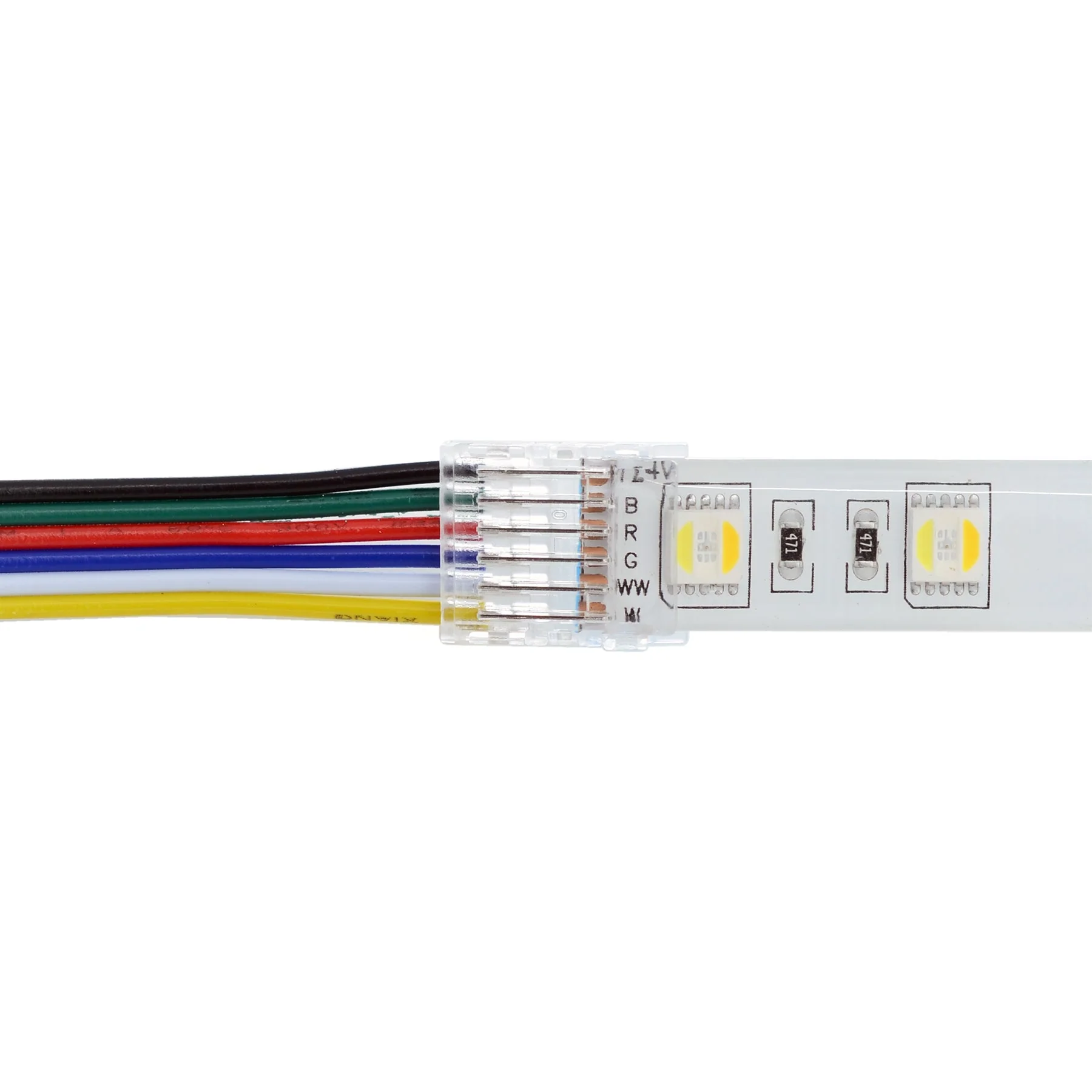

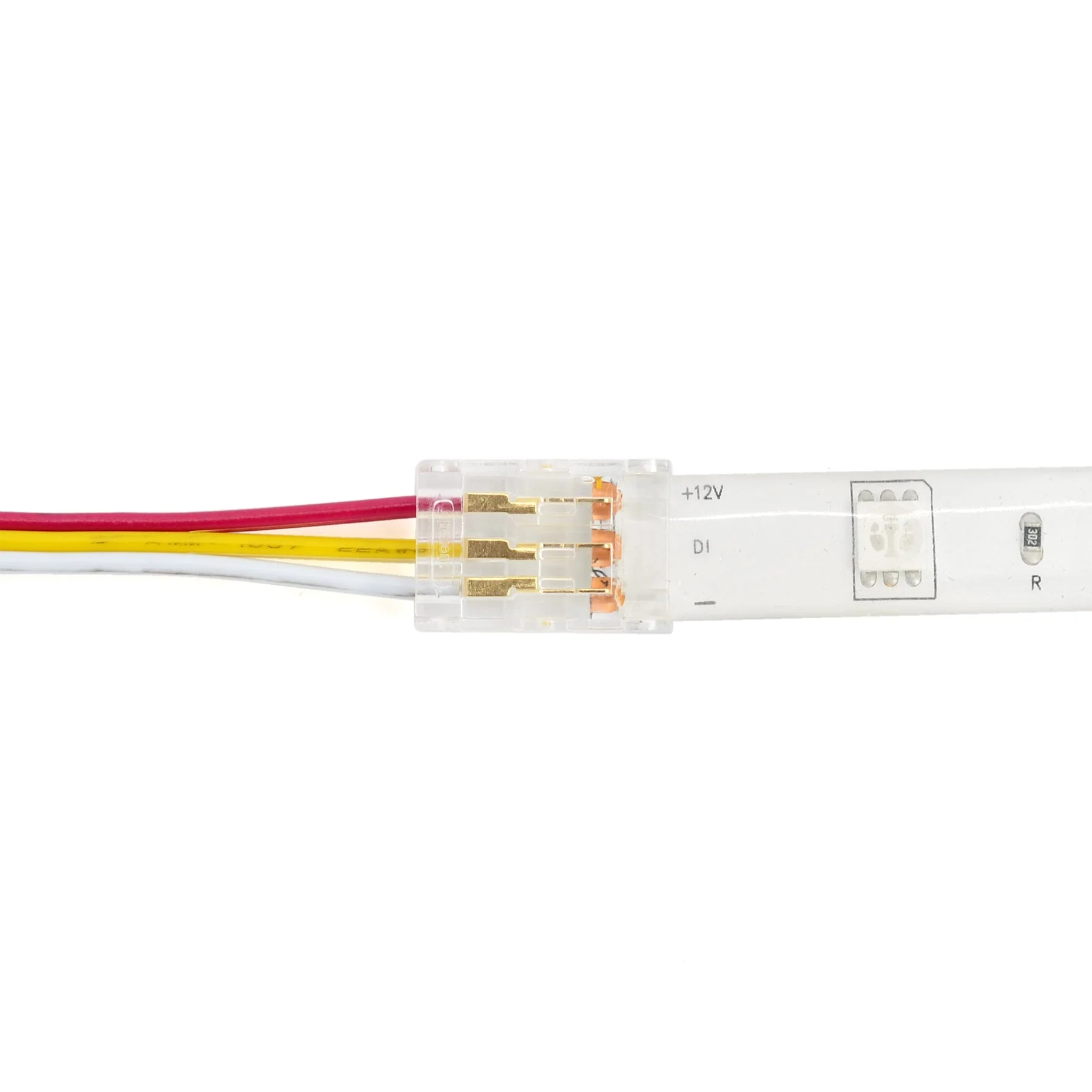

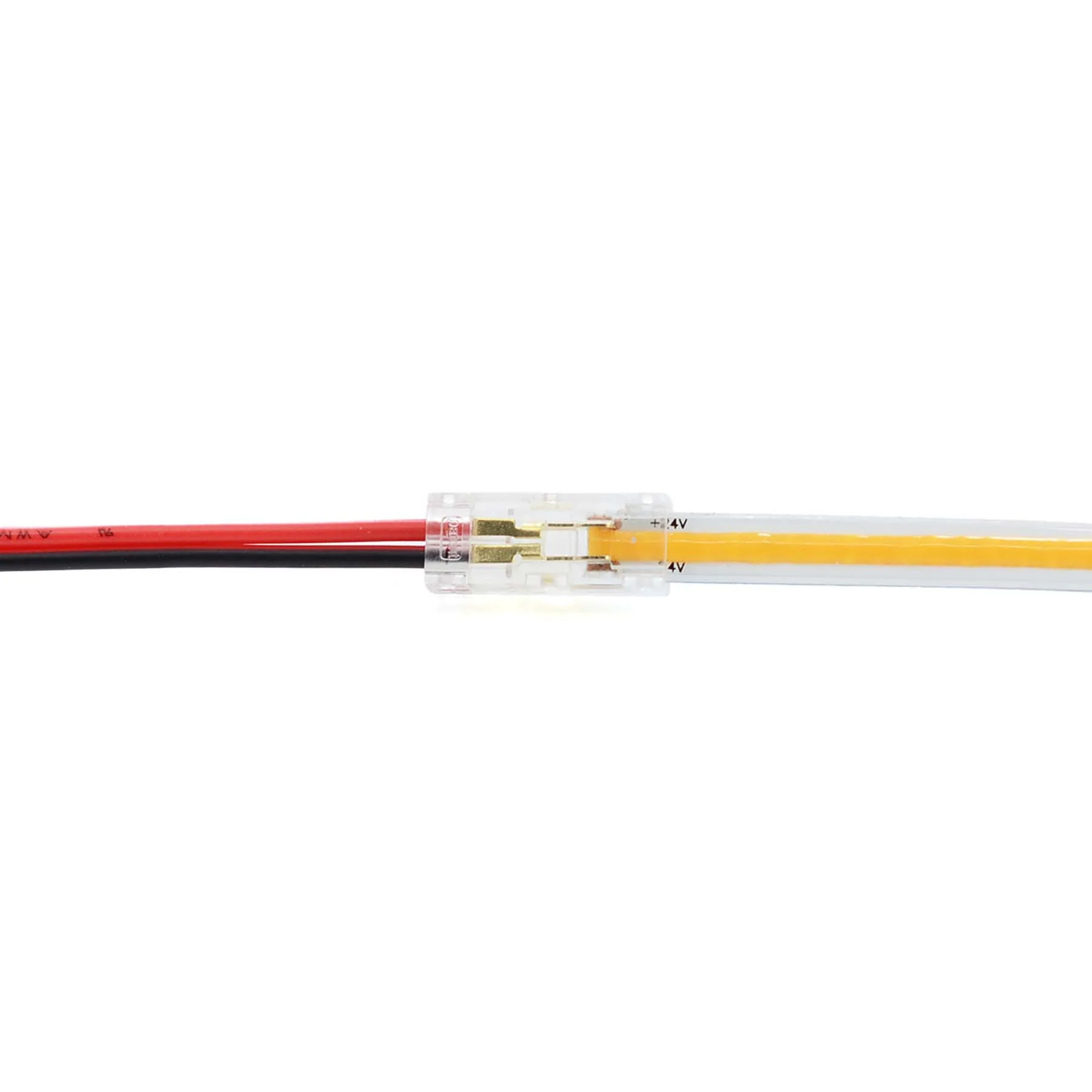

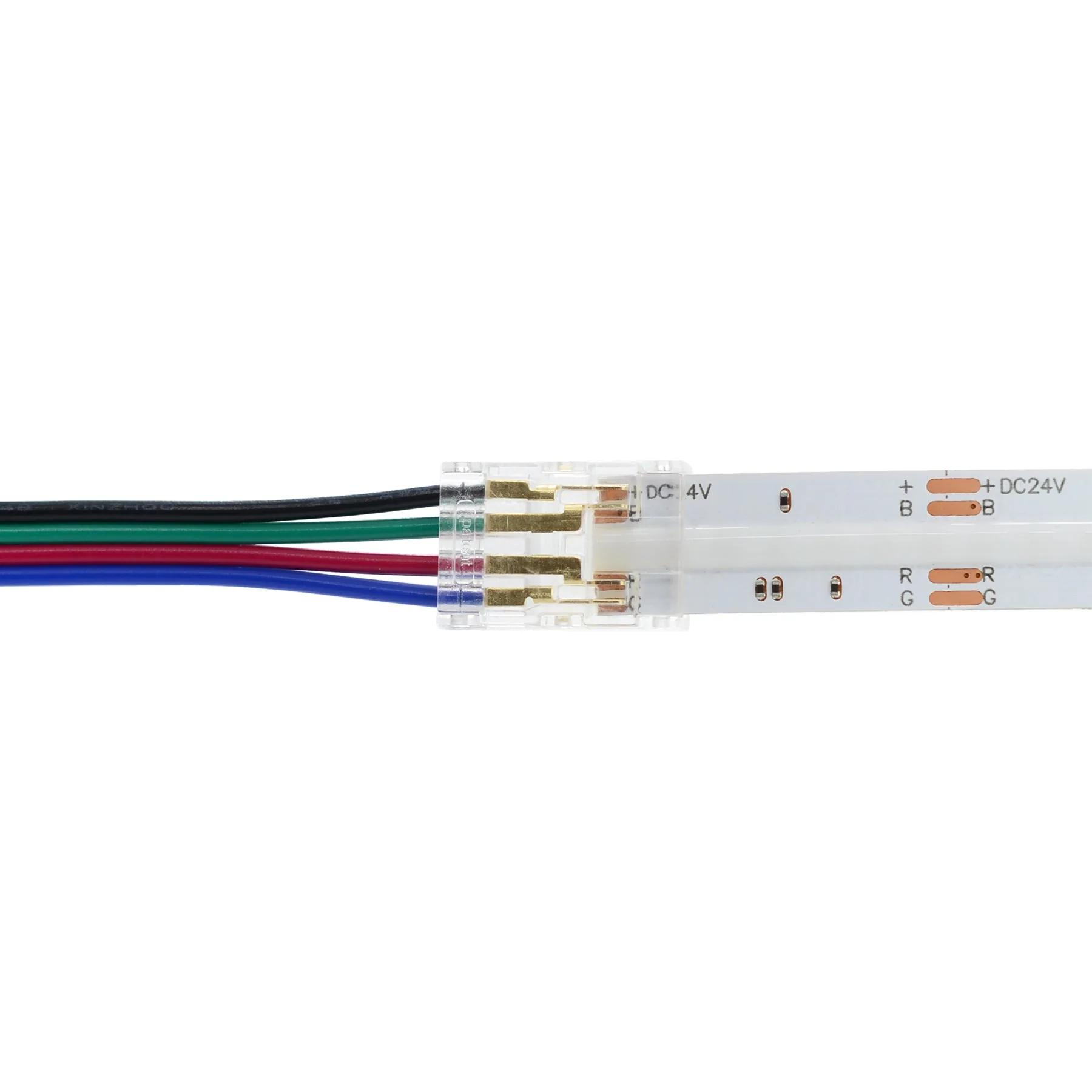

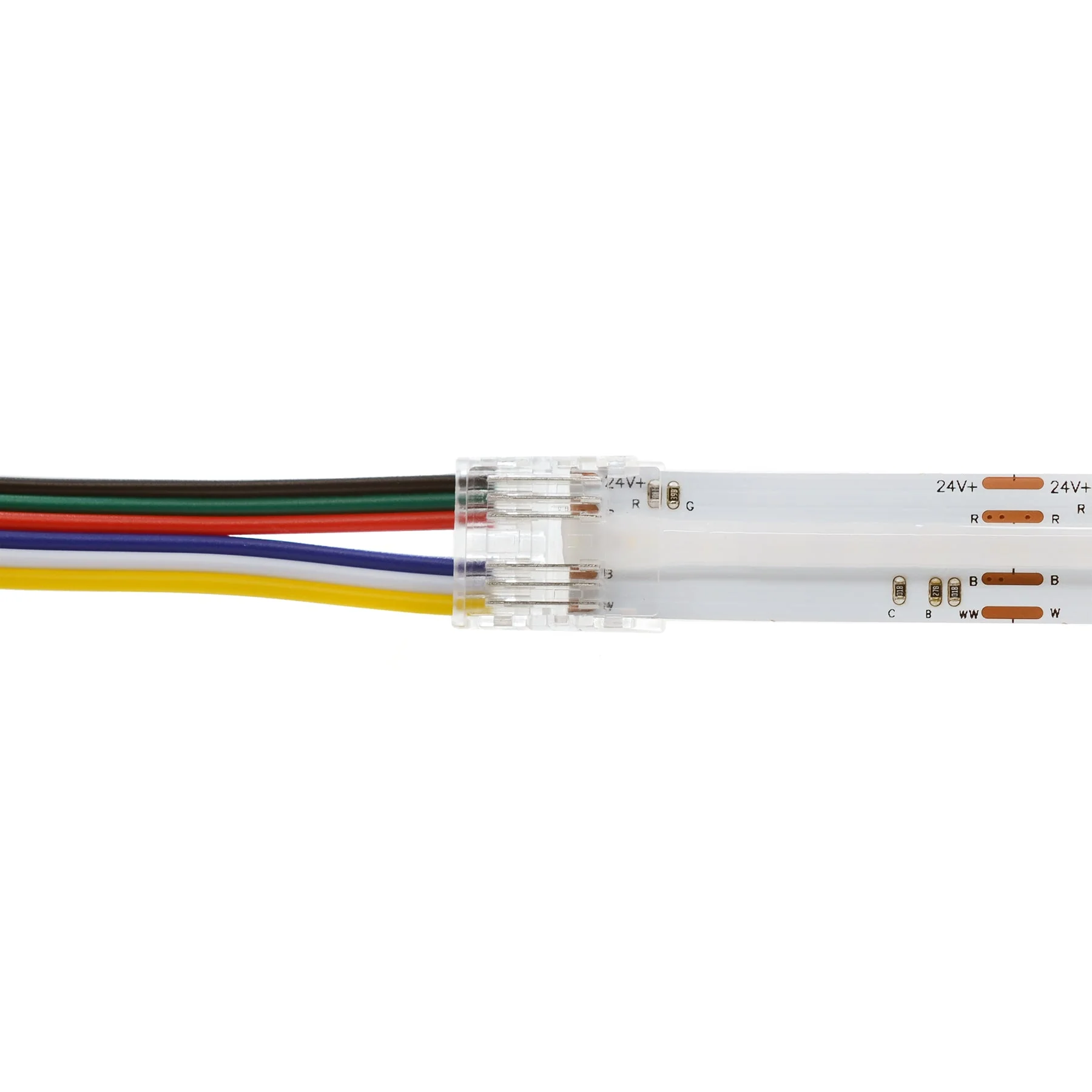

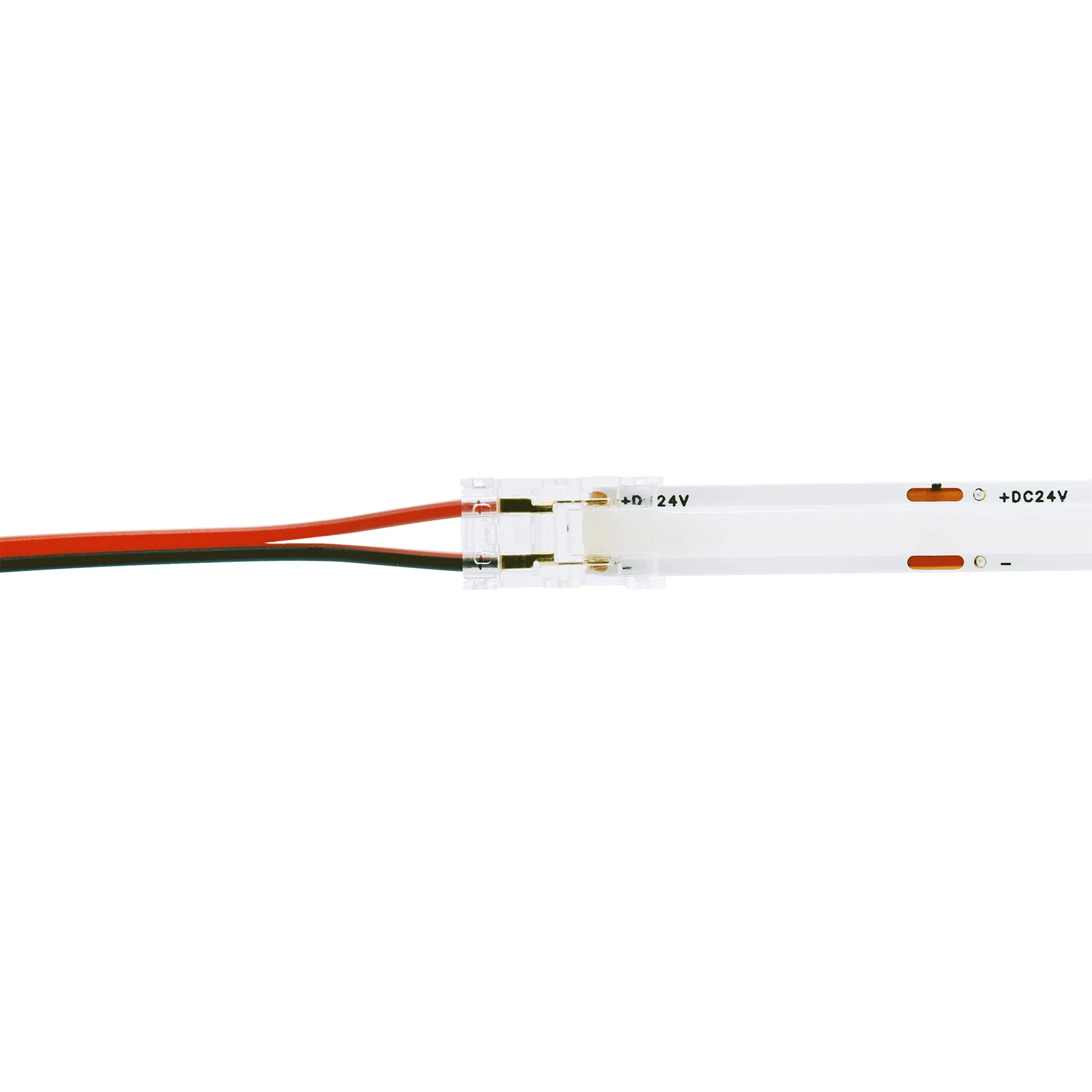

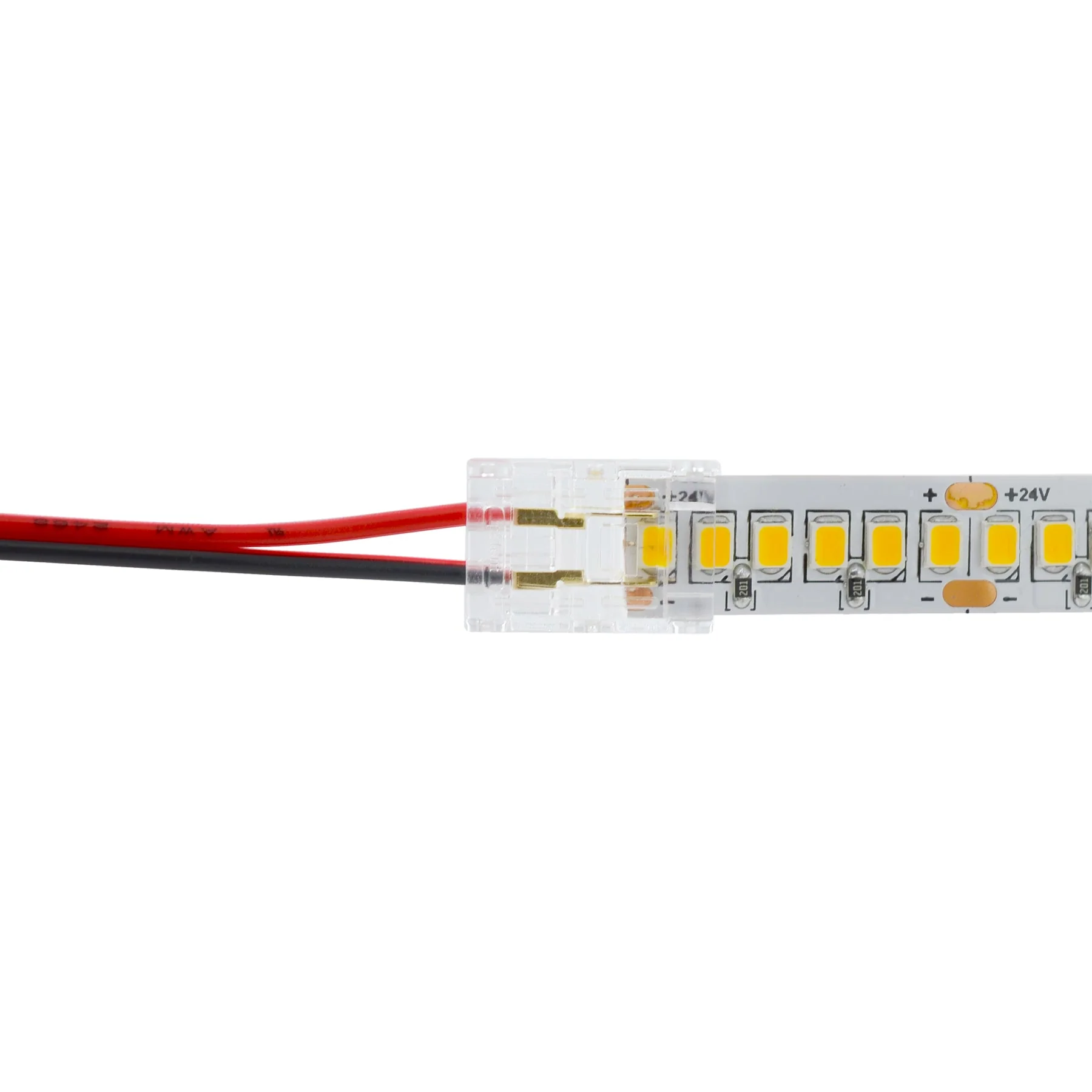

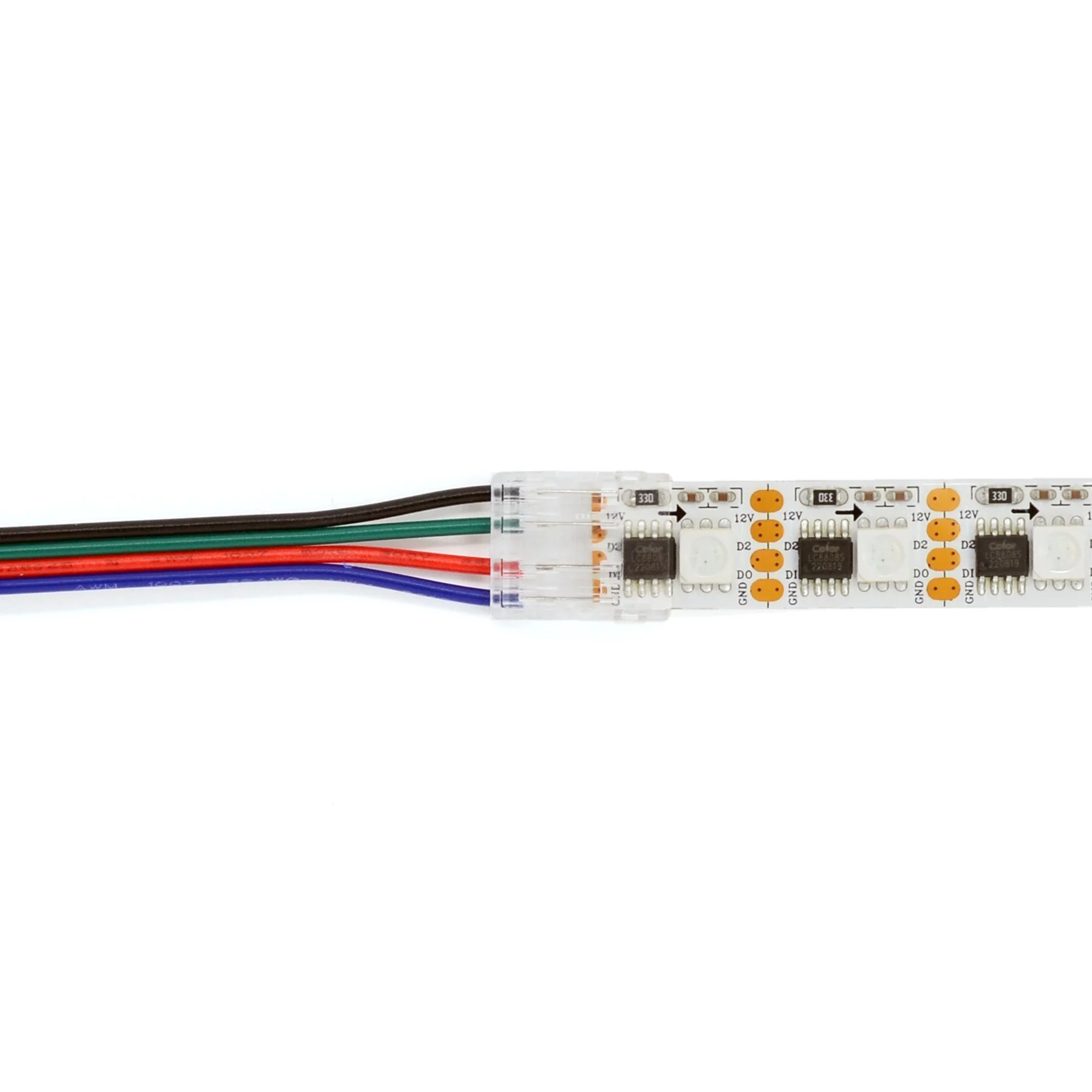

- Insert the LED strip: Slide the strip into the connector, ensuring the copper pads sit under the metal pins.

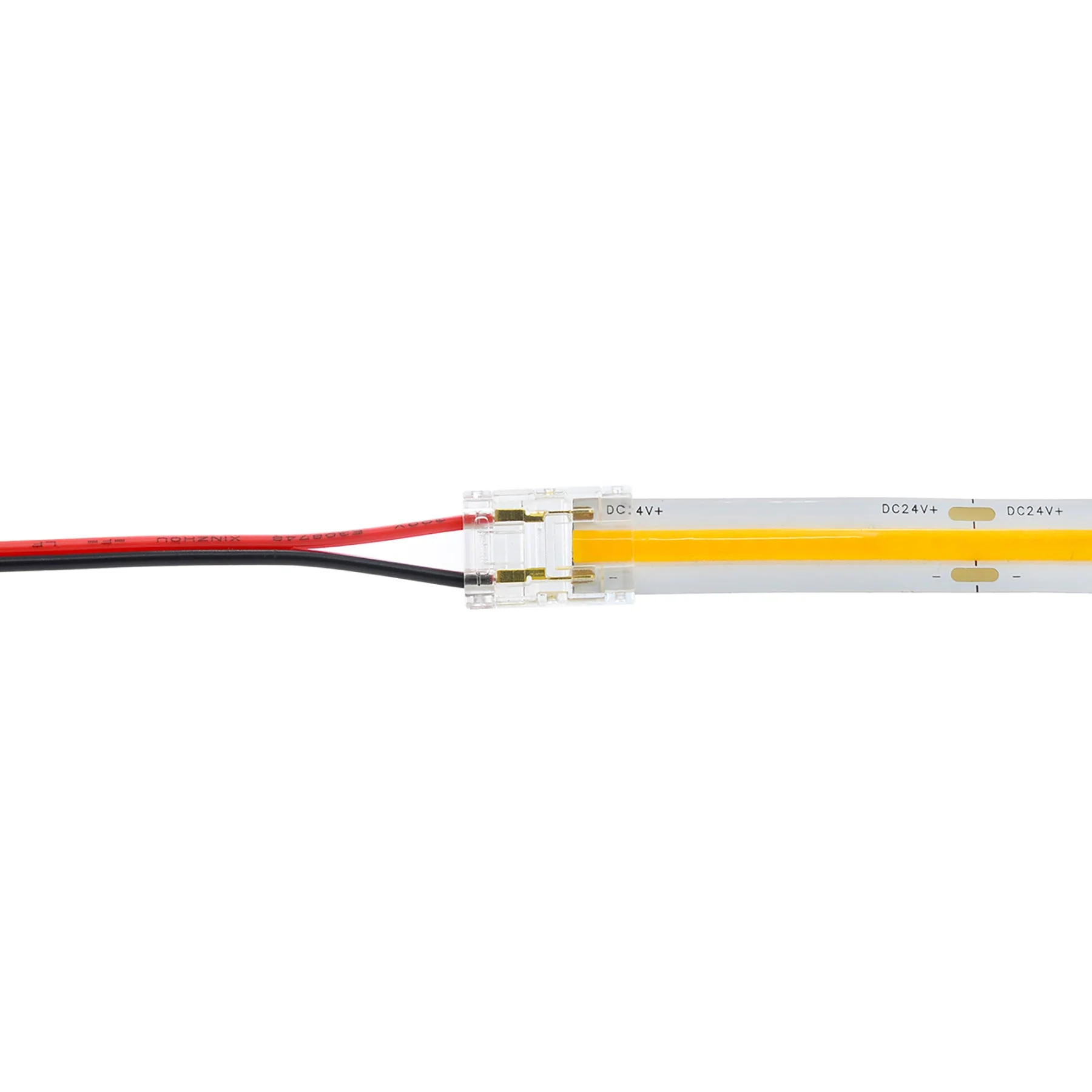

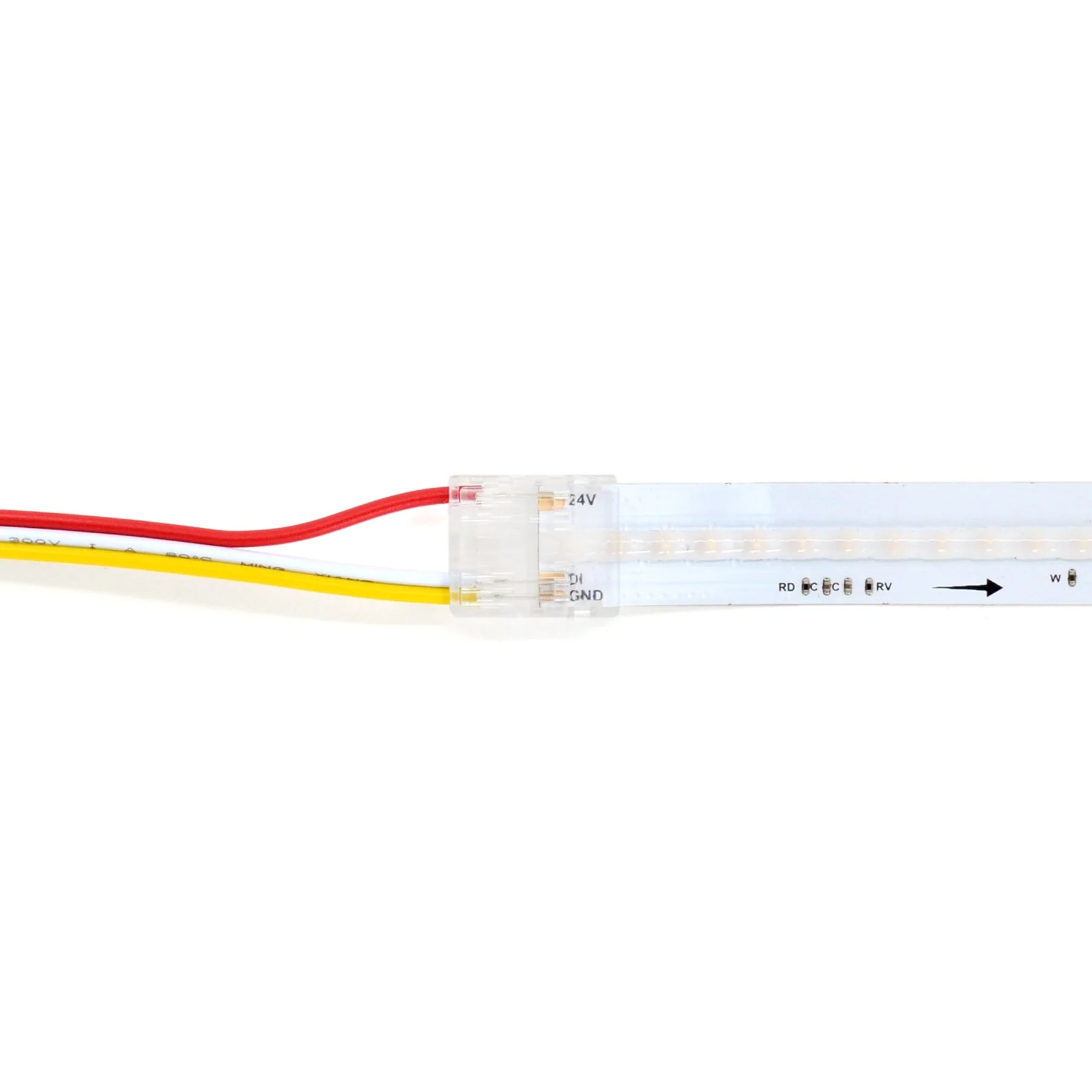

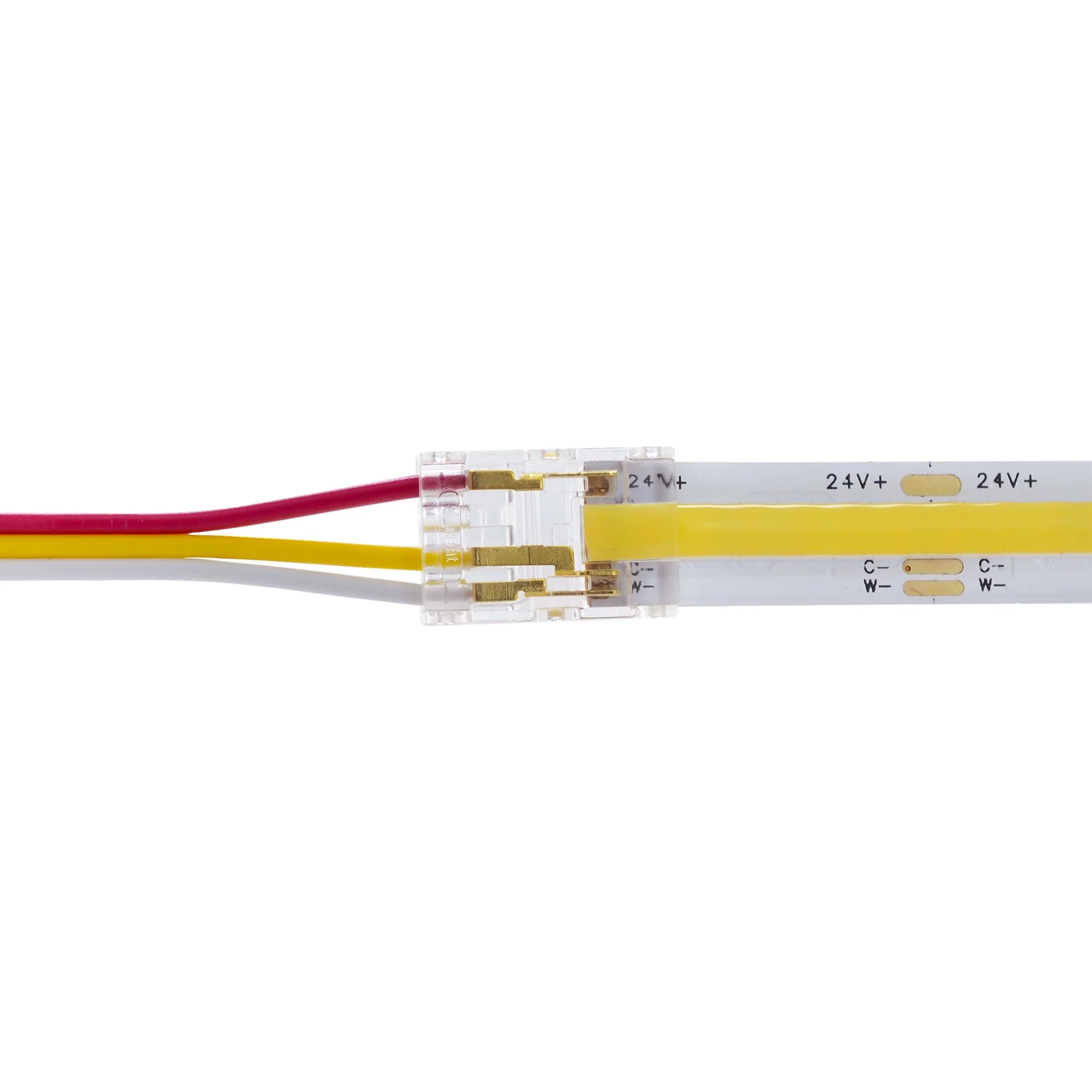

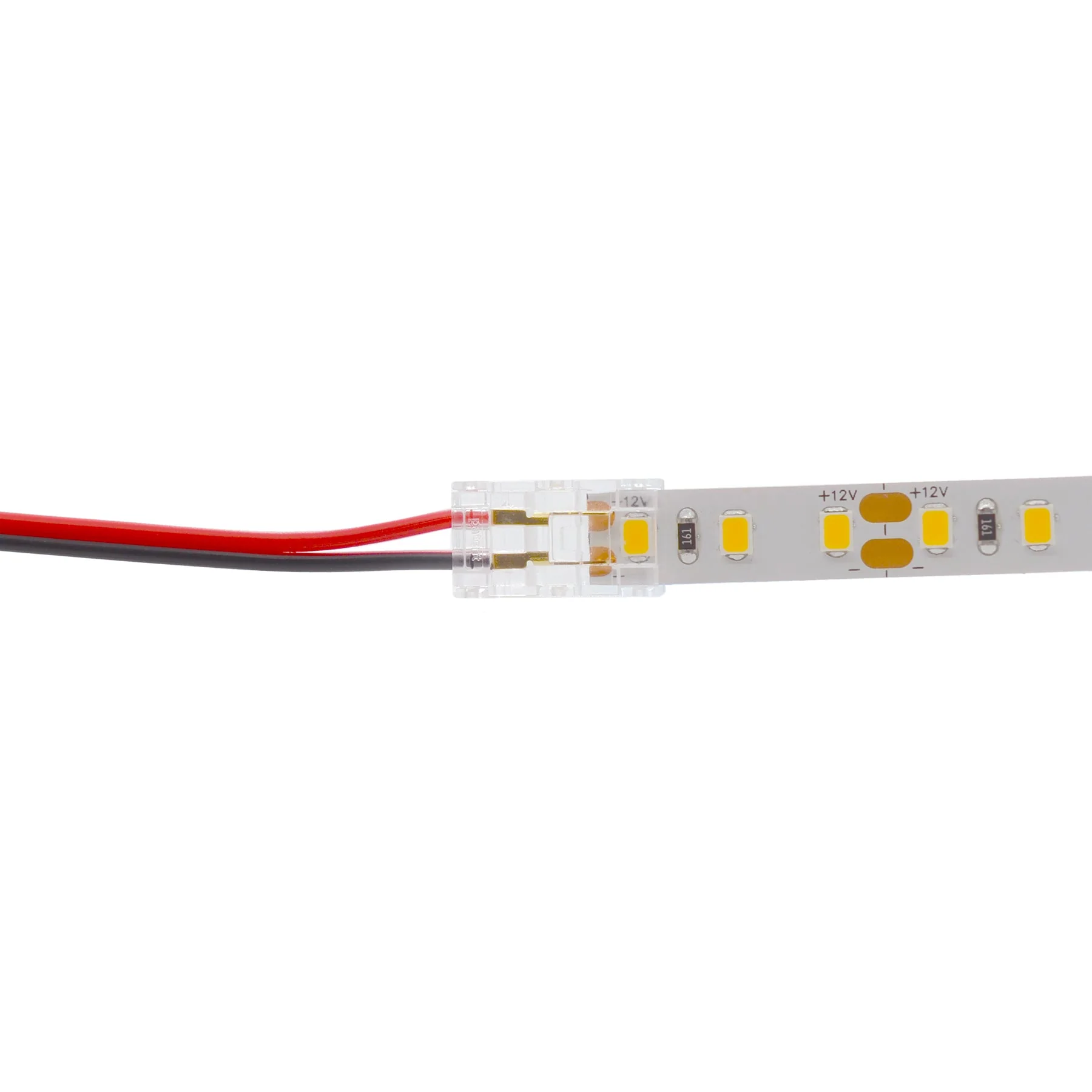

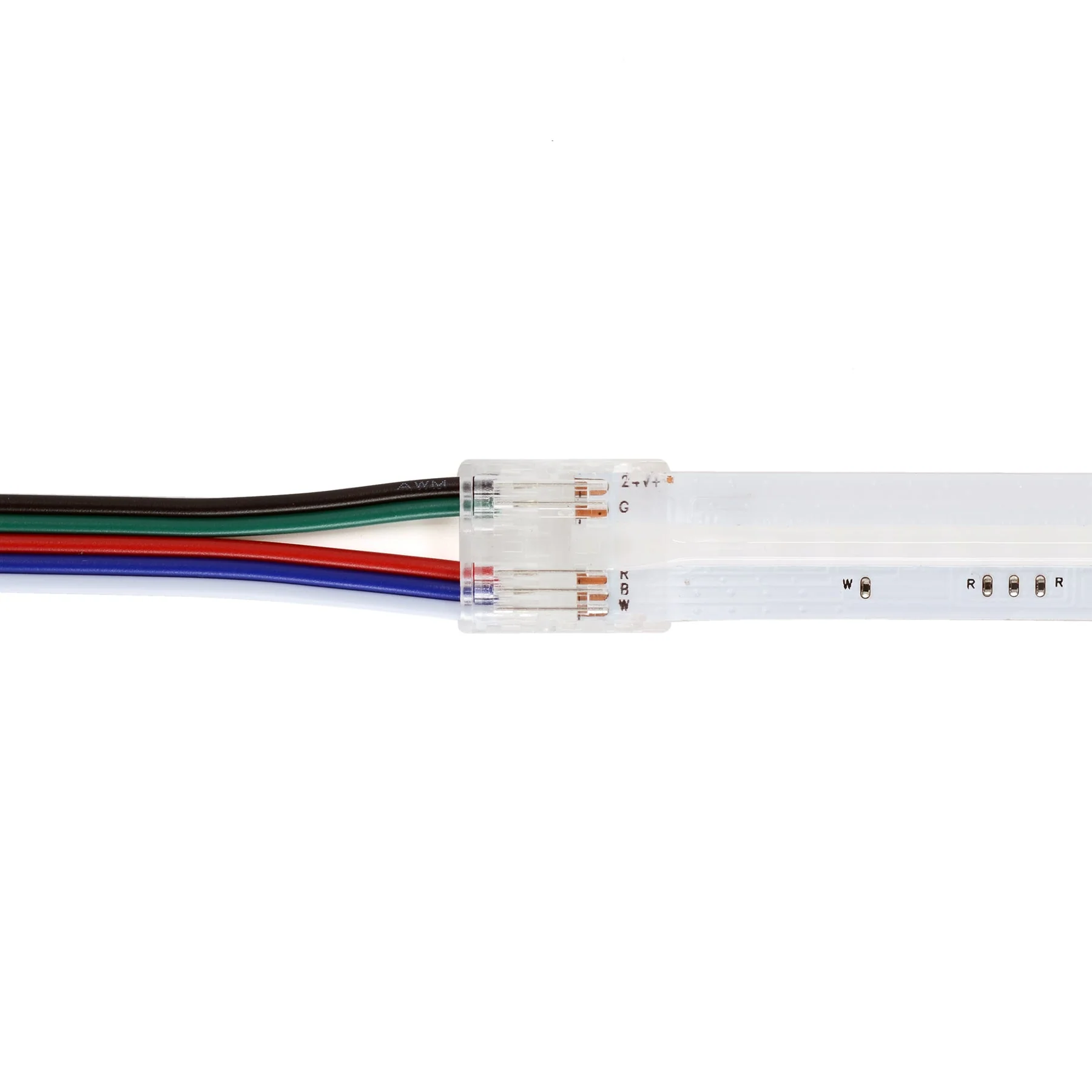

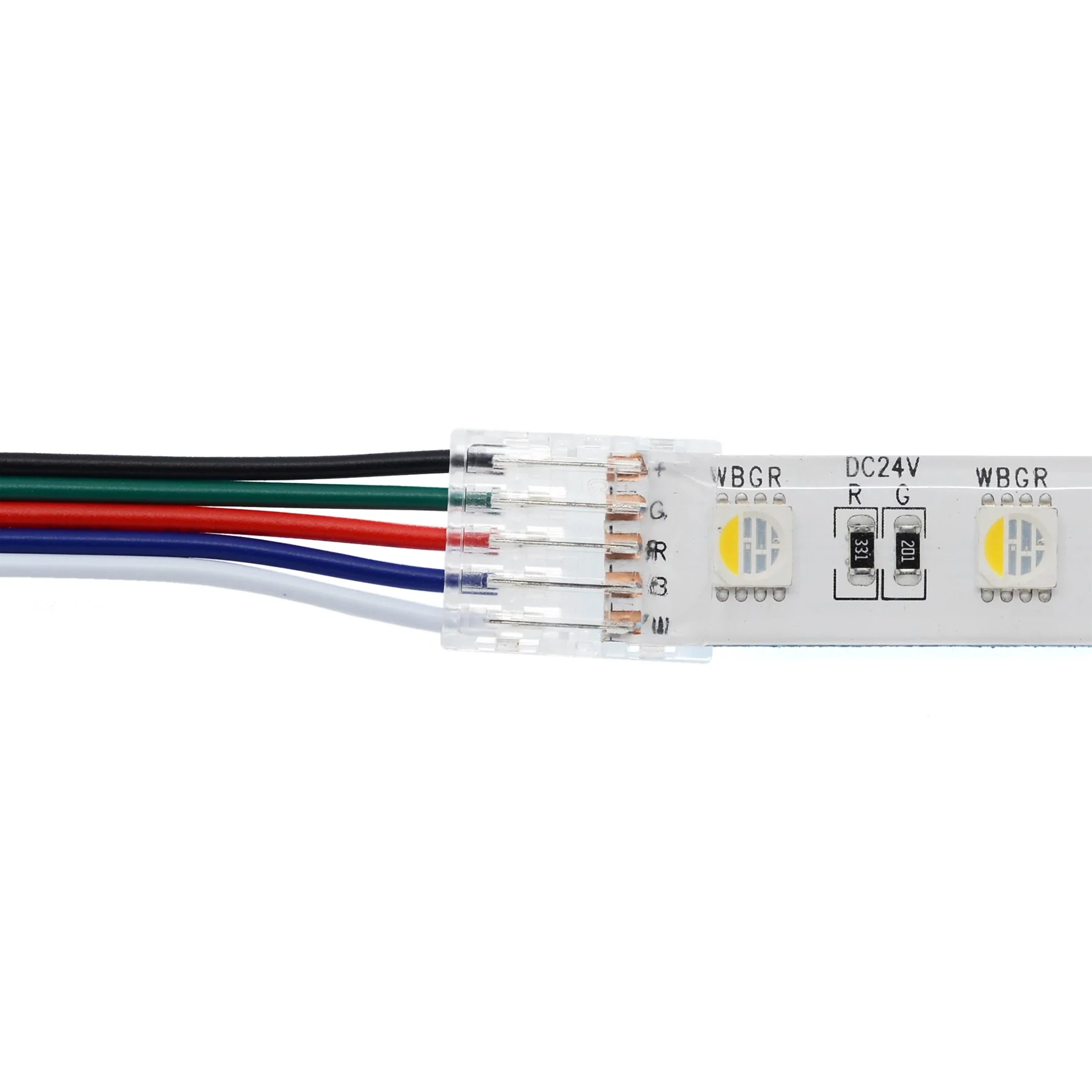

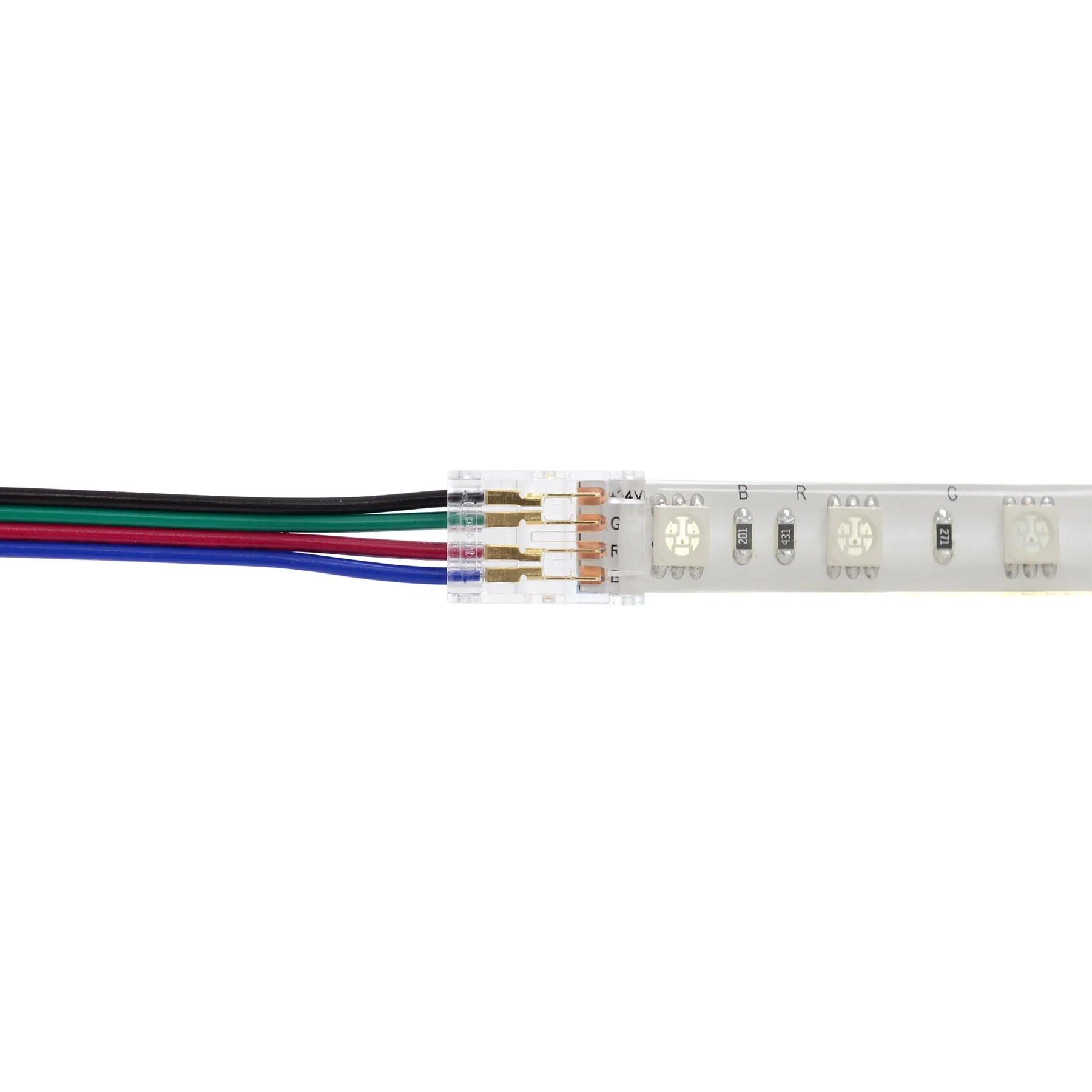

- Insert the wire: Insert the matching core cable into the wire side of the connector, aligning each wire with the correct polarity/position.
- Close the clip firmly: Press down until it clicks shut, securing both the strip and the wire.
- Test the connection: Turn the power back on and check the strip lights up evenly.
Notes:

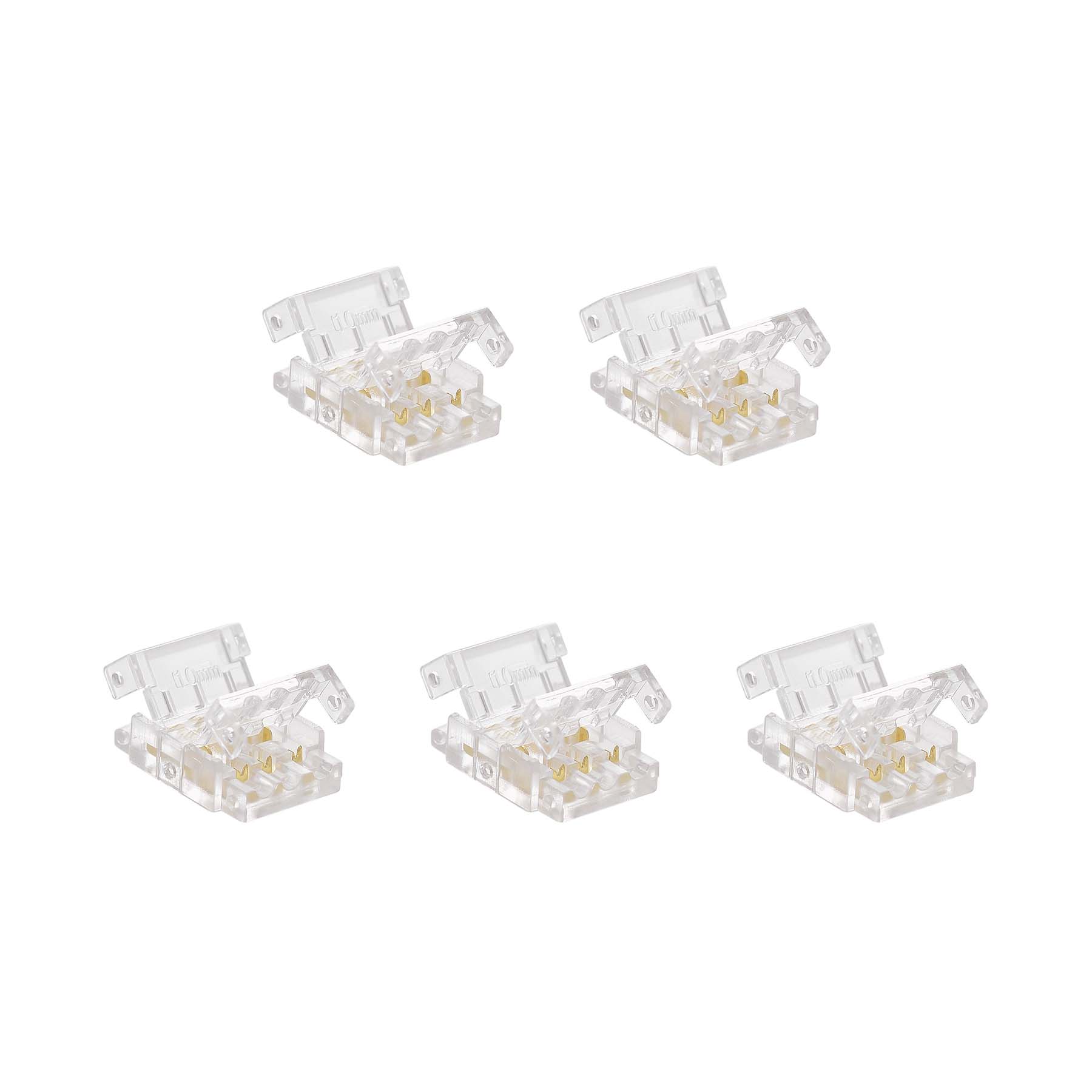

- Supplied as a pack of 5 connectors.
- Double check polarity (+ / –) before closing the connector to ensure correct operation.
- For DC low voltage LED strips only. Not suitable for mains or high voltage strip lights.

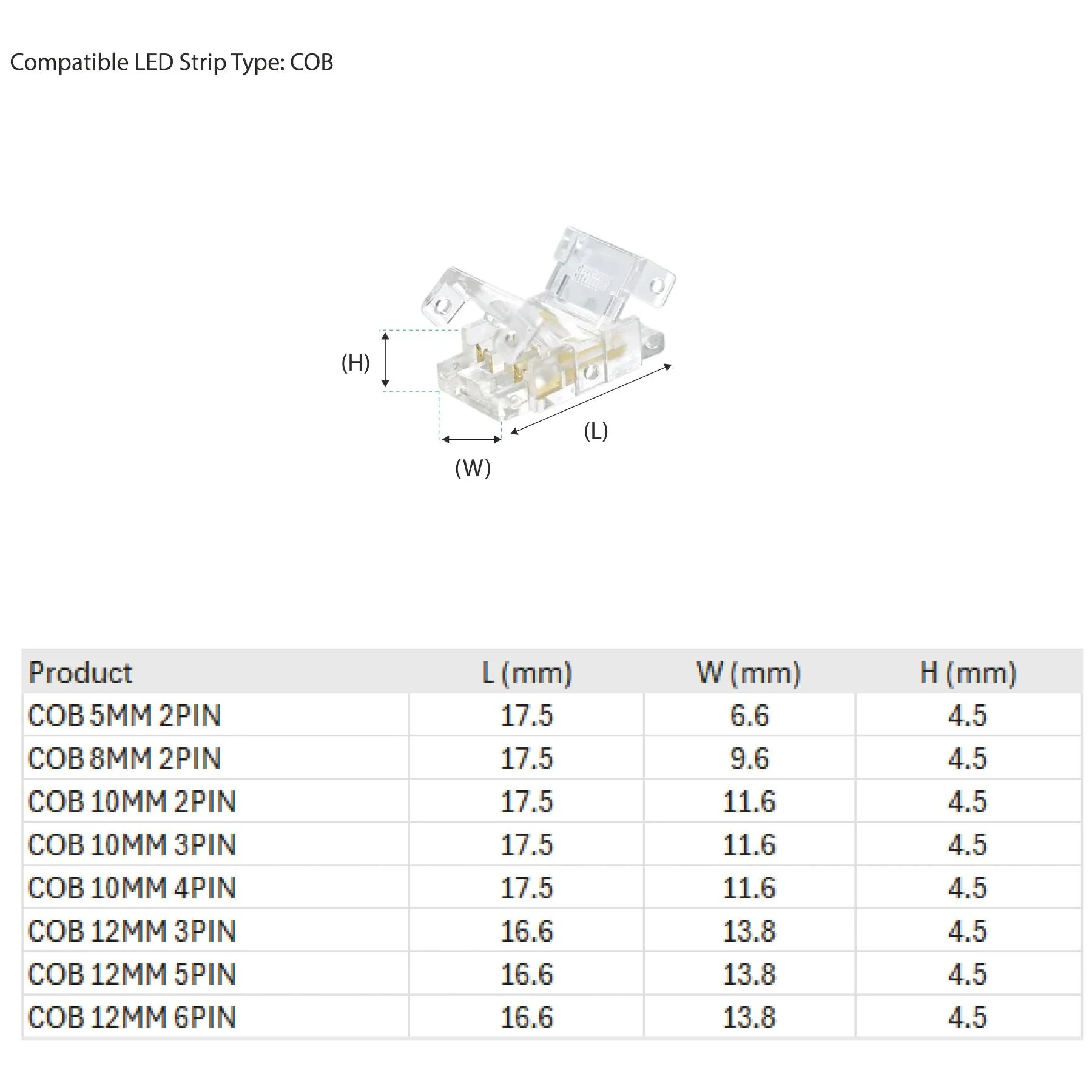

| Product | L (mm) | W (mm) | H (mm) |
| COB 5MM 2PIN | 17.5 | 6.6 | 4.5 |
| COB 8MM 2PIN | 17.5 | 9.6 | 4.5 |
| COB 10MM 2PIN | 17.5 | 11.6 | 4.5 |
| COB 10MM 3PIN | 17.5 | 11.6 | 4.5 |
| COB 10MM 4PIN | 17.5 | 11.6 | 4.5 |
| COB 12MM 3PIN | 16.6 | 13.8 | 4.5 |
| COB 12MM 5PIN | 16.6 | 13.8 | 4.5 |
| COB 12MM 6PIN | 16.6 | 13.8 | 4.5 |

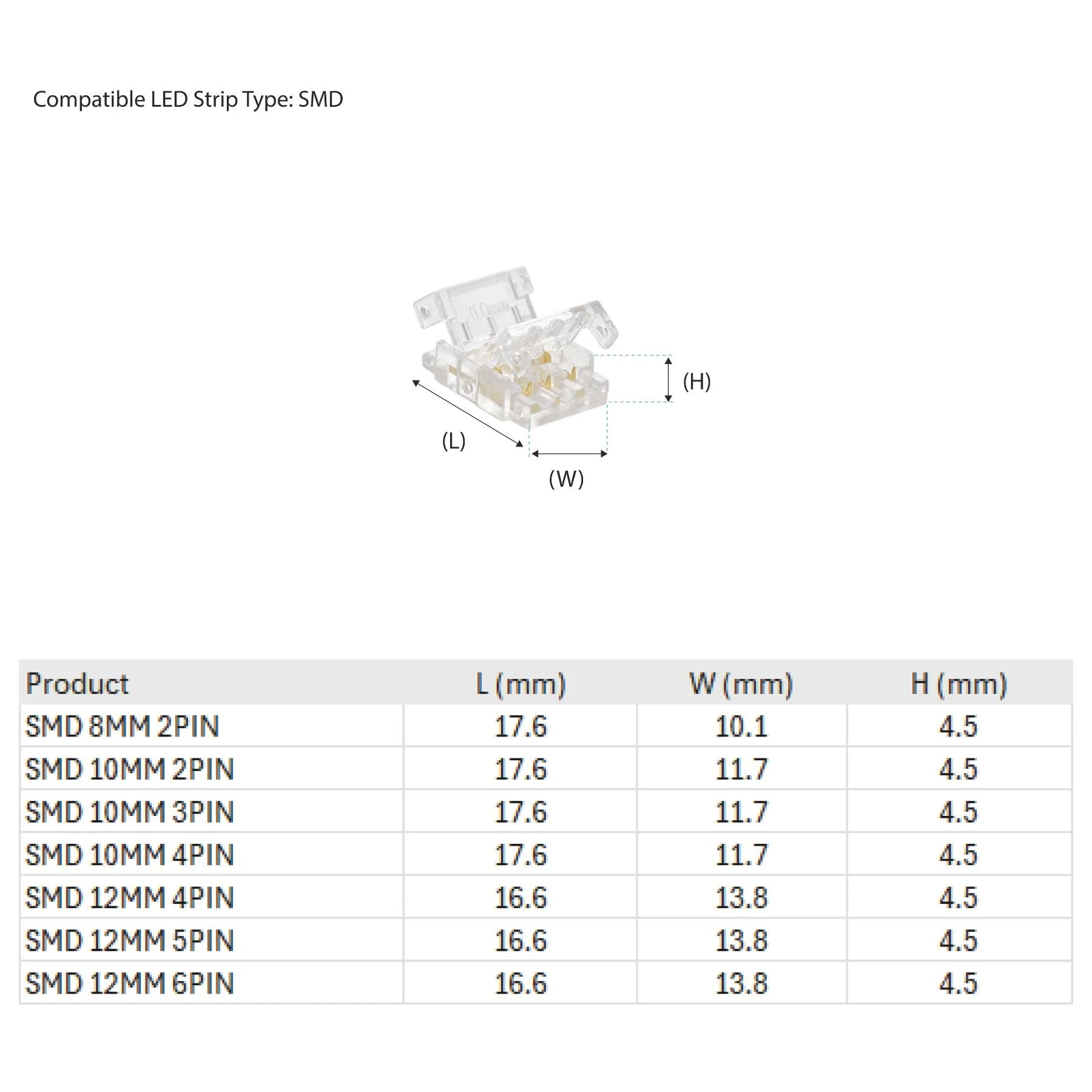

| Product | L (mm) | W (mm) | H (mm) |
| SMD 8MM 2PIN | 17.6 | 10.1 | 4.5 |
| SMD 10MM 2PIN | 17.6 | 11.7 | 4.5 |
| SMD 10MM 3PIN | 17.6 | 11.7 | 4.5 |
| SMD 10MM 4PIN | 17.6 | 11.7 | 4.5 |
| SMD 12MM 4PIN | 16.6 | 13.8 | 4.5 |
| SMD 12MM 5PIN | 16.6 | 13.8 | 4.5 |
| SMD 12MM 6PIN | 16.6 | 13.8 | 4.5 |
