LED 12-48V DC DMX Decoder 4CH*8A D4-P

LED 12-48V DC DMX Decoder 4CH*8A D4-P

  • Comply with the DMX512 standard protocols.

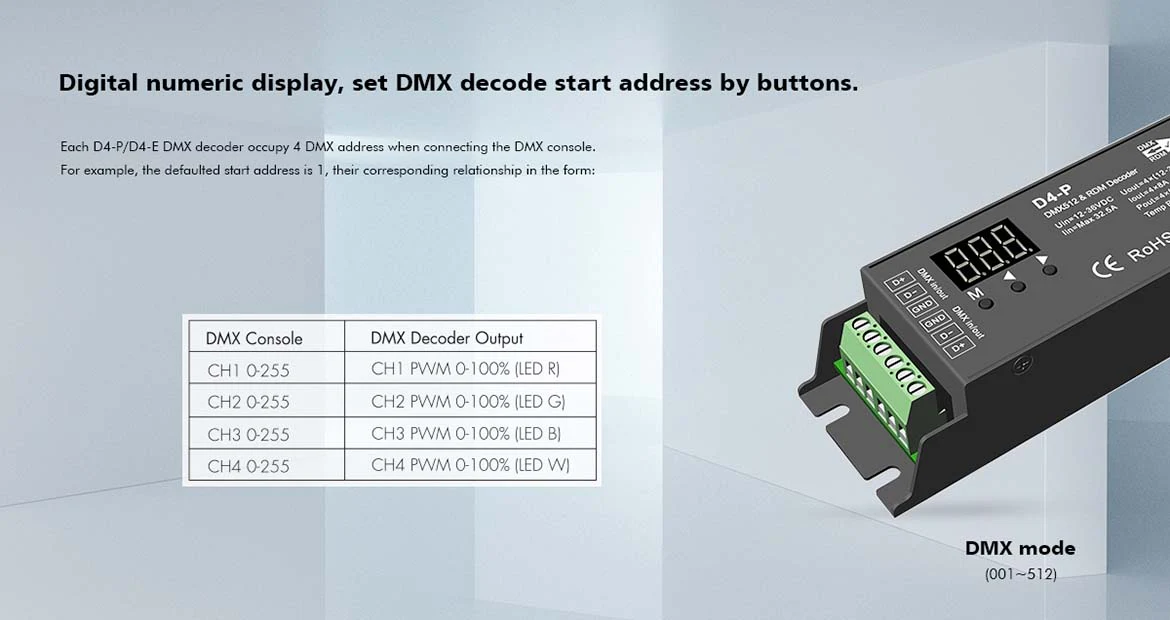

  • Digital numeric display: set DMX to decode and start the address using the buttons.

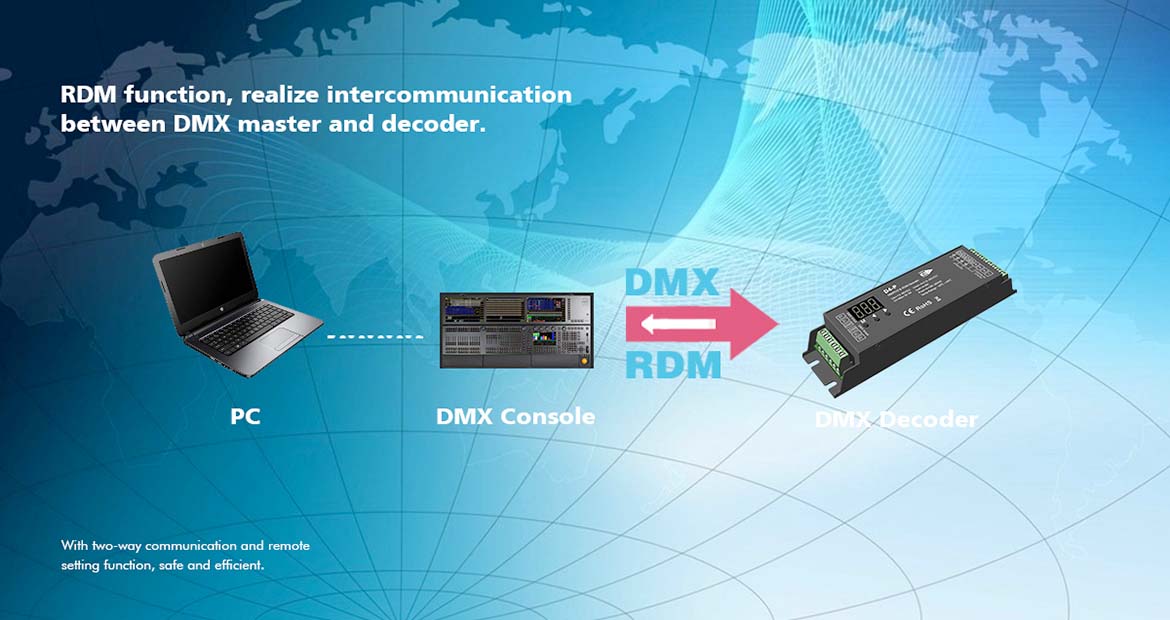

  • RDM function allows communication between the DMX master and decoder. For example, the DMX decoder address can be set by the DMX master console.

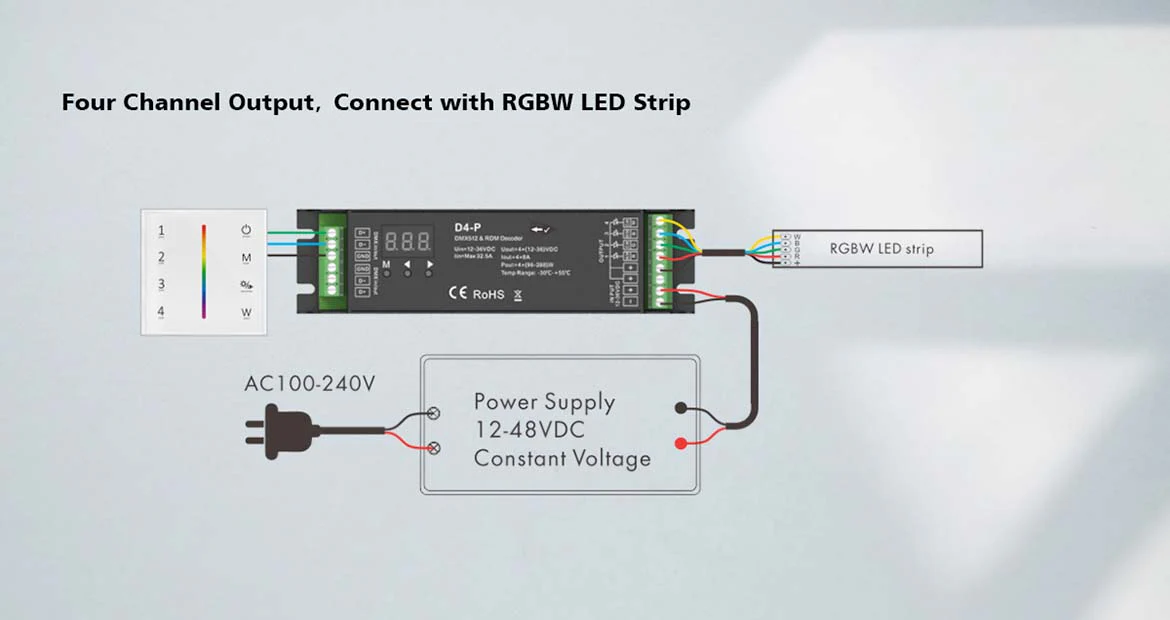

  • 1/2/4 DMX channel output.
  • 16bit (65536 levels)/8bit (256 levels) grey level.

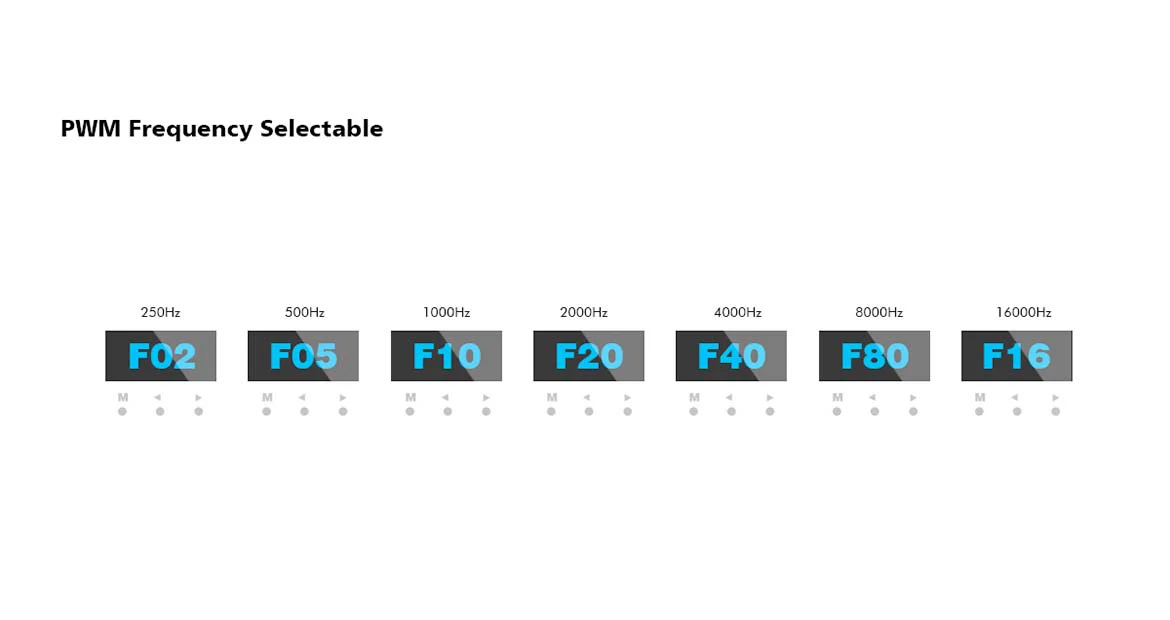

  • PWM frequency 250/500/1000/2000/4000/8000/16000Hz.

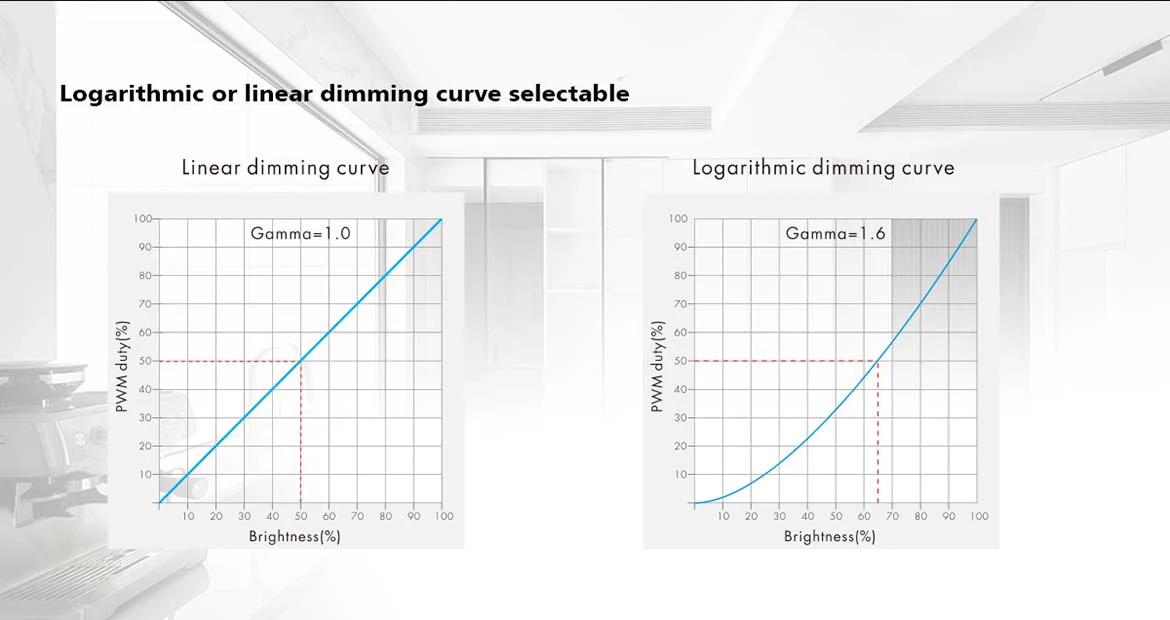

  • Logarithmic or linear dimming curve adjustable.
  • Over-heat/over-load/short circuit protection, and automatic recovery.

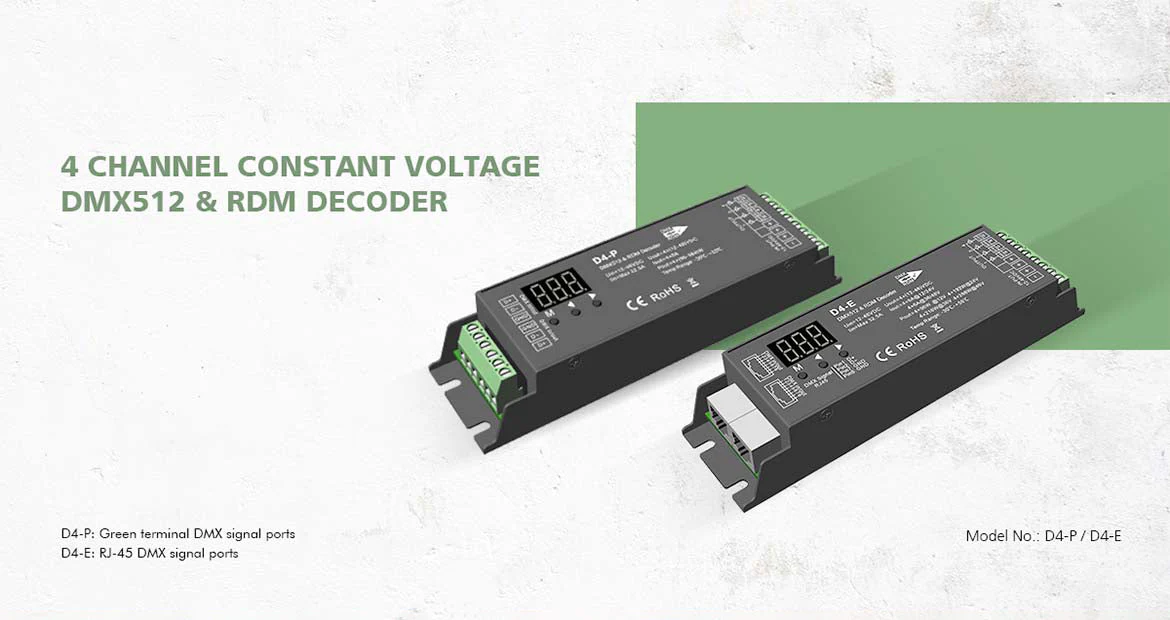

  • Green terminal DMX signal ports.
$16.67

Original: $47.63

-65%
LED 12-48V DC DMX Decoder 4CH*8A D4-P—

$47.63

$16.67

Product Information

Shipping & Returns

Description

  • Comply with the DMX512 standard protocols.
  • Digital numeric display: set DMX to decode and start the address using the buttons.
  • RDM function allows communication between the DMX master and decoder. For example, the DMX decoder address can be set by the DMX master console.
  • 1/2/4 DMX channel output.
  • 16bit (65536 levels)/8bit (256 levels) grey level.
  • PWM frequency 250/500/1000/2000/4000/8000/16000Hz.
  • Logarithmic or linear dimming curve adjustable.
  • Over-heat/over-load/short circuit protection, and automatic recovery.
  • Green terminal DMX signal ports.
